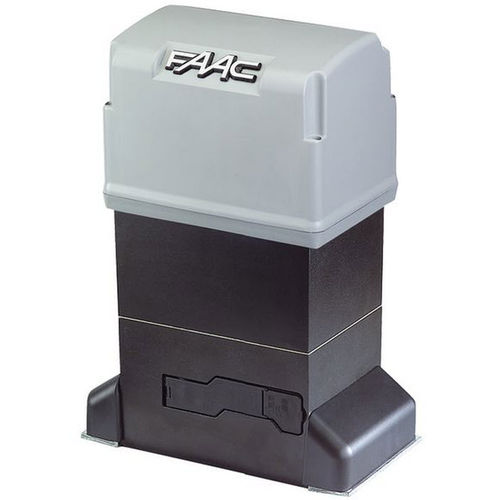

Self-locking sliding gate drive 844 ER

Product overview
The 844 ER Z16 is a 230 V gearmotor for sliding gates with a maximum leaf weight of 1,800 kg, designed for light commercial and industrial applications. FAAC - Simply automatic.

Key features

• Suitable for commercial and industrial sites
• Anti-crushing safety with twin-disk oil-bath clutch
• Non-reversing gearmotor: no electric locks required
• Key-operated manual release for operation during power outages
• Inductive or magnetic limit switch depending on model
• Twin-disk clutch in oil-bath for smoother torque transmission

Technical specifications

• Duty: Light Commercial / Industrial
• Power consumption: 650 W
• Power supply: 230 V
• Maximum gate weight: 1,800 kg
• Maximum speed: 9.5 m/min
• Use frequency: 70%
• Limit switch type: Inductive or magnetic (model dependent)
• Clutch: Twin-disk in oil-bath
• Manual release: Key-operated device for power cuts

Model variants

• 844 ER Z16 | Part No. 109837 | Application: Light commercial; Industrial | Use frequency: 70% | Limit switch: Inductive | Power supply: 230 V | Maximum leaf weight: 1,800 kg | Gate obstacle detection: No encoder
• 844 R | Part No. 109838 | Application: Light commercial; Industrial | Use frequency: 70% | Limit switch: Inductive | Power supply: 230 V | Maximum leaf weight: 1,800 kg | Gate obstacle detection: No encoder

Installation & maintenance

• Key-operated manual release for safe manual operation during power loss
• Twin-disk oil-bath clutch reduces mechanical wear and improves safety
• Pre-equipment for adjustable mounting (height and lateral)
• Follow local regulations for safety devices and routine maintenance schedules
