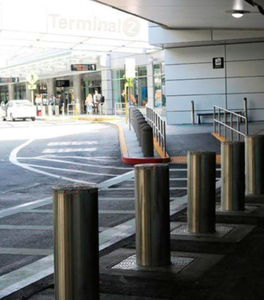

Automatic retractable bollard J275 V2 series

hydraulicsteelstainless steel

Overview
The J275 range comprises hydraulic, semi-automatic and fixed bollards designed for intensive use. Drive unit is housed within the cylinder. Even the basic configuration includes 12 built-in flashing LEDs, a buzzer emergency release and mechanical release. Foundation boxes are sectional. Standard descent time is 3.5 s; selectable rapid descent reduces this to 1.2 s.

Key features

• Bollards for intensive use with simplified installation and maintenance
• Drive unit mounted inside the cylinder; standard equipment: 12 flashing LEDs, buzzer emergency release, mechanical release
• Sectional foundation boxes for modular installation
• Standard descent time 3.5 s; selectable fast descent 1.2 s

Technical specification

• Duty: Intensive use
• Diameter: 275 mm
• Cylinder stroke: 600 mm or 800 mm
• Finish: Painted steel or brushed stainless steel
• Rise time: 5 s (typical hydraulic)
• Standard descent time: 3.5 s
• Selectable fast descent: 1.2 s
• Crash resistance: 128 KJ (steel) / 207 KJ (stainless steel)

Variants

• J275 Hydraulic bollard | Part Number: 116006 | Application: Commercial | Cylinder Height: 600 mm | Approx. Rising Time: 5.00 | Approx. Descent Time: 3.50
• J275 Hydraulic bollard | Part Number: 116007 | Application: Commercial | Cylinder Height: 800 mm | Approx. Rising Time: 7.00 | Approx. Descent Time: 4.50
• J275 Fixed bollard | Part Number: 116020 | Application: Commercial | Cylinder Height: 600 mm | Approx. Rising Time: N/A | Approx. Descent Time: N/A
• J275 Fixed bollard | Part Number: 116021 | Application: Commercial | Cylinder Height: 800 mm | Approx. Rising Time: N/A | Approx. Descent Time: N/A
• J275 Hydraulic bollard stainless steel | Part Number: 116036 | Application: Commercial | Cylinder Height: 600 mm | Approx. Rising Time: 5.00 | Approx. Descent Time: 3.50
• J275 Hydraulic bollard stainless steel | Part Number: 116037 | Application: Commercial | Cylinder Height: 800 mm | Approx. Rising Time: 7.00 | Approx. Descent Time: 4.50
• J275 Fixed bollard stainless steel | Part Number: 116040 | Application: Commercial | Cylinder Height: 600 mm | Approx. Rising Time: N/A | Approx. Descent Time: N/A
• J275 Fixed bollard stainless steel | Part Number: 116041 | Application: Commercial | Cylinder Height: 800 mm | Approx. Rising Time: N/A | Approx. Descent Time: N/A
• J275 Semi automatic bollard | Part Number: 116050 | Application: Commercial | Cylinder Height: 600 mm | Approx. Rising Time: N/A | Approx. Descent Time: N/A
• J275 Semi automatic bollard stainless steel | Part Number: 116060 | Application: Commercial | Cylinder Height: 600 mm | Approx. Rising Time: N/A | Approx. Descent Time: N/A

Product details
BIM objects are available for multiple J275 variants including fixed, semi-automatic and hydraulic automatic versions.

• BIM objects available for FAAC J275 F (Fixed bollards)
• BIM objects available for FAAC J275 F 2K (Security Fixed bollards)
• BIM objects available for FAAC J275 SA (Semi-Automatic bollards)
• BIM objects available for FAAC J275 HA_V2 (Hydraulic Automatic bollard)
• BIM objects available for FAAC J275 HA_2K (Hydraulic Automatic Security bollard)

Video tutorials

• FAAC J275HA Bollard Installation
• FAAC J275HA Bollard Pit Laying
• FAAC J275HA Bollard Pit Assembly
• FAAC J275HA Bollard Drive Unit Replacement

Technical characteristics

• Duty: Intensive use
• Diameter: 275 mm
• Cylinder stroke: 600 mm or 800 mm
• Finish options: Painted steel or brushed stainless steel
• Rise time: approx. 5 s (hydraulic)
• Standard descent time: 3.5 s; Selectable fast descent: 1.2 s
• Crash resistance: 128 KJ (steel) / 207 KJ (stainless steel)
