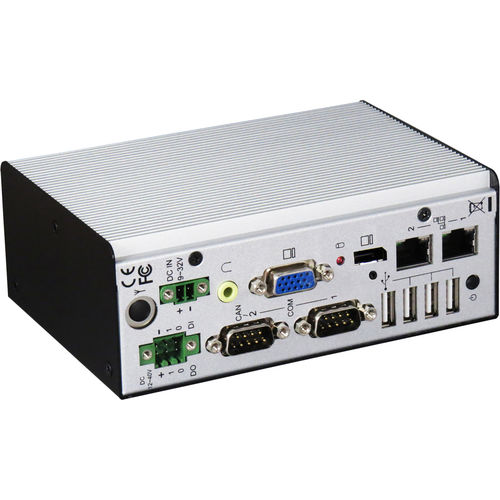

Box PC FX5328

embeddedVGADDR3L SODIMM

Fanless, Low Power, DinRail Mount & Supporting Mini-Card for wireless modules Applications: Thin Client、Home Automation、Digital Signage、Transportation、Motion Automation、Vehicle Computer Optional Accessories: FX5311K1 - VESA Mount (75 x75 mm Only) AK-1006-Half size PCIe Mini Card Adapter Kit FX5407K3 - LCD VESA Mount Kit Function Items - Specifications CPU Board - AMD G-Serial T40E Processor - 1GHz Max DRAM - 4GB DDR3L DRAM Socket - 204-Pin SoDIMM *1 (DDR3L,8GB Max) I/O Connector - KB/Mouse - - Serial - RS232/422/485 *1、RS232/422/485/CANBUS*1 Parallel - - USB - 4 (2.0) LAN - 2 (Giga LAN) Display - VGA、 DP Dual Display - Yes Audio - Line-Out GPIO - 2 In、2 Out BUS I/F - PCIe Mini-Card Slot *1 Storage Bay - CFast Socket - Yes SD Socket - Yes HDD Space - 2.5" *1 (SATA) Power Reguired - Input Voltage - DC 9V ~ 32V Rated Current - 46VA Max Operation System - Windows 7 /8 /8.1, WIN10 IoT and Linux Operation Temperature - -10°C to 55°C (-13℉ to 122℉) Compliances - CE / FCC / RoHS Dimension (W x D x H) - 54 x 104 x 145 mm
