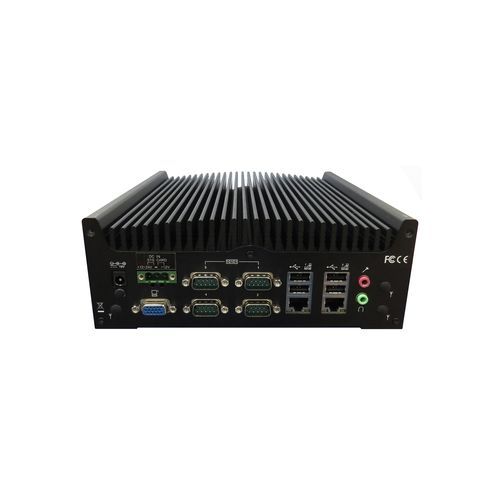

Box PC FX5637

Intel® Core i3Intel® Core i5Intel® Core i7

Fanless, Expansion BUS, Multi-LAN & Supporting Mini-Card for wireless modules Applications: Motion Automation、Digital Signage、Gaming、Communications、Network Monitoring Optional Accessories: FX5636K1-Wall Mount Kit AK-1006-Half size PCIe Mini Card Adapter Kit FX5637K1-DDR3L RAM anti-vibration kit Function Items - Specifications CPU Board - Core™ i7-4700EQ + QM87；Core™ i5-4422E + QM87；Core™ i3-4102E + QM87 Processor - i7-4700EQ 2.4GHz；i5-4422E 1.8GHz；i3-4102E 1.6GHz DRAM - 8GB DDR3L；8GB DDR3L；4GB DDR3L DRAM Socket - 204-Pin SoDIMM *1 (DDR3L, 8GB Max) I/O Connector - KB/Mouse - - Serial - RS232*2、RS232/422/485 *2 Parallel - - USB - 2 (3.0)、 4 (2.0) LAN - 2 (Giga LAN) Display - VGA、DP、HD Dual Display - Yes Audio - Yes GPIO - 2 In、2 Out Mini-Card - 2 BUS I/F - - Storage Bay - CFast Socket - Yes HDD Space - 2.5" *1 (SATA) Power Reguired - Input Voltage - DC 12~24V Rated Current - 75VA Max Operation System - Windows XPe/ 7/ 8/ 8.1 (32/64), WIN10 IoT and Linux Operation Temperature - -20°C to 50°C (-4℉ to 122℉) Compliances - CE / FCC / RoHS Dimension (W x D x H) - 210 x 252 x 77.2 mm
