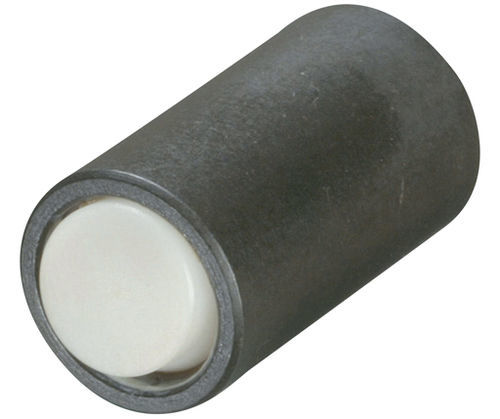

Self-aligning pad MBBU-1012-D

Cylindrical body allows for installation in tight areas. The housing is tapped for backside fastening. The replaceable flat ball swivels to allow for self-alignment on uneven surfaces and is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately. Diameter Overall: 10 mm. Length Body: 10.5 mm. Diameter Contact Surface: 6 mm. Height Standoff: 1.5 mm. Degree Swivel: 28 Degrees. Thread Internal - Tap: M4x0.7 mm. Length Thread: 3.5 mm. Diameter Ball: 7 mm.
