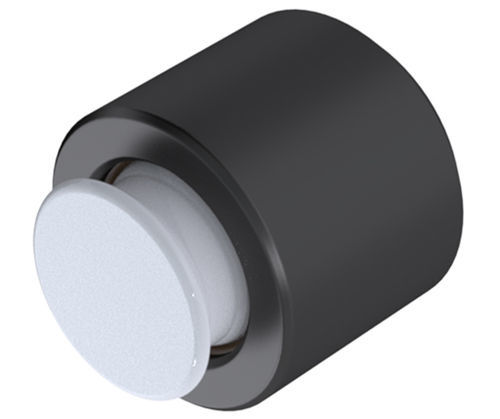

Self-aligning pad BBU-100-DC

Cylindrical body allows for installation in tight areas. The housing is tapped for backside fastening. The replaceable ball swivels to allow for self-alignment on uneven surfaces and is made from non-marring white delrin. The flat cone design provides a large contact surface for greater force distribution. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately. Diameter Overall: 3/8 in. Length Body: 5/16 in. Diameter Contact Surface: .236 in. Standoff : .063 in. Degree Swivel: .063 Degrees. Thread Internal - Tap: 28 Length Thread: #4-40 in. Diameter Ball: 1/4 in. Part No. Ball Only: 3/16
