DC pantograph

Overview

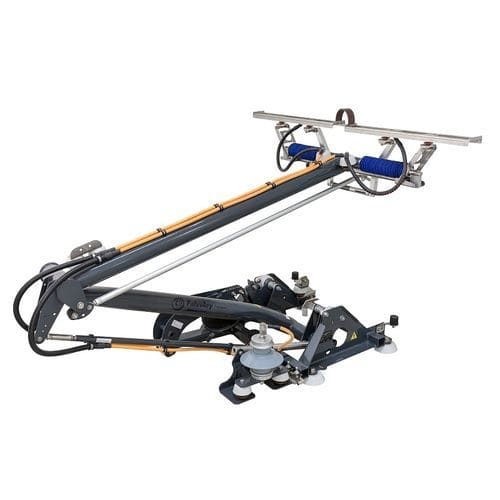

The 2-pole charging pantograph is roof-mounted on electric buses and other vehicles to connect with existing trolleybus catenary or dedicated tram/trolley supply stations for battery charging and/or vehicle supply. The unit is pneumatically actuated and designed for customizable head width and installation dimensions.

Benefits for you

• Enables low-emission urban transport by using existing overhead infrastructure
• Double copper strips for reliable high-current transmission
• Pneumatic actuation for controlled engagement and retraction
• Panhead width and overall dimensions adapted to customer requirements
• Panhead kneeling in two directions to compensate for bus kneeling and lateral position
• Cost-effective option for cities with established trolleybus networks
• Decades of experience in pantograph and trolleybus current collector design
• 3D model available for download (ZIP)

Main Parameters
Nominal voltage: 750 V DC
Maximum permanent current: Up to 500 A
Pneumatic control supply: 5–10 bar
Dimensions: According to customer request
Housed height: 480 mm
Maximum height: According to customer request
Allowed lateral offset: Up to ±200 mm
Allowed kneeling (pantograph connected): ±4°
Working ambient temperature: -30°C to +70°C
Pollution degree: PD4
Overvoltage degree: OV3
Weight (according to head width): 110–120 kg
Pneumatic control unit weight: 5 kg

Technical specifications

• Nominal voltage: 750 V DC
• Maximum permanent current: Up to 500 A
• Pneumatic control supply: 5–10 bar
• Dimensions: According to customer request
• Housed height: 480 mm
• Maximum height: According to customer request
• Allowed lateral offset: Up to ±200 mm
• Allowed kneeling (pantograph connected): ±4°
• Working ambient temperature: -30°C to +70°C
• Pollution degree: PD4
• Overvoltage degree: OV3
• Weight (according to head width): 110–120 kg
• Pneumatic control unit weight: 5 kg
