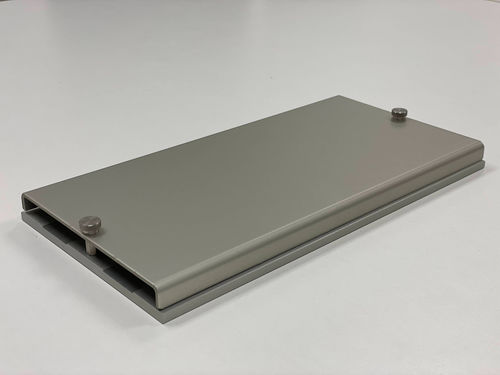

Plastic tray AMT series

Holding, safe guarding and transporting Formed Ceramic FPGA's and or Metal Cased Hybrid SMD's can be a challenging and daunting task. The completed SMT formed devices can be Top Brazed, Side Exit or Bottom Brazed configurations. They can be very thin and/or very thick, have leads on one, two, three or four sides of each device. Metal cased devices can have very fragile glass to metal seals that cannot be touched for fear of cracking glass, the Hybrid device of losing its hermetic seals rendering it unusable. The devices are all sensitive to ESD so proper precautions of this outside influence also needs to be addressed and the devices isolated when in the trays. Fancort's Adjustable Matrix Trays offer a sound and safe solution for all of these devices and their special needs. Fancort's standard trays hold up to ten formed Quad Packs or ten Flat Packs depending on the tray ordered. Download 'Fancort's Line of Adjustable Matrix Trays' brochure. Tray to hold up to 10 quadpacks - AMT-6x12QP Tray to hold up to 10 flatpacks - AMT-6x12FP Tray to hold 10 quadpacks with bottom brazed leads - AMT-6x12QP-B Closed Matrix Tray Open Quad Pack Tray Showing Special Plungers for Bottom Brazed Devices Tray to hold 10 flatpacks with bottom brazed leads - AMT-6x12FP-B Tray to hold 10 quadpacks for pick and place machines - AMT-6x12QP-A Dedicated tray to hold up to "6" formed 352 FPGAs - AMT-6X12QP-SP •Holds most quadpacks or flatpacks up to 1-3/4" long •Moveable plastic slides are molded in PPA with carbon fiber, with a surface Resistivity of •10E5-10E7 ohm/cm •Supports are non-sloughing and tolerate 170ºC
