"FLEX TWO SIDED SMT FORM & TRIM SYSTEMS"
UNCOMPROMISING ACCURACY AND VERSATILITY
Fancort's Flex family of adjustable forming systems are the most versatile and accurate adjustable production tools for most Flat Packs and Quad Packs.
The Flex is the only system that can accurately center Quad Packs in a two-sided system allowing the leads of any Quad Pack to meet the X-Y pads on a PCB every time. The centering station and the loader also reduce operator error and handling.
Our optional patented Floating Anvil Automatic System incorporates automatic standoff height control measuring the height of every part run in the system. A typical system consists of a Flex tool, Floating Anvil Press, Centering Station and Loader with vacuum.

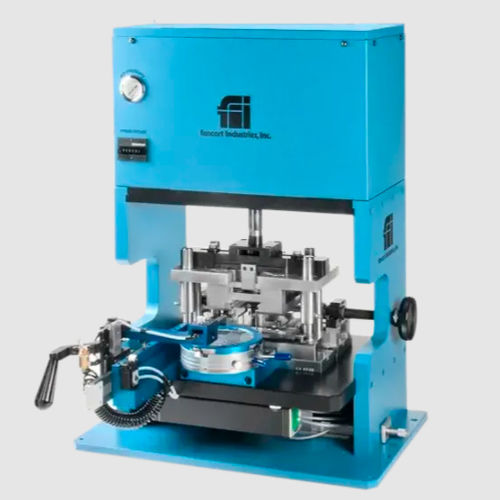

The FLEXTM is a two-sided gull-wing lead forming system with automatic standoff control.
Simple changeover of die members, combined with accurate, repeatable changes in tip to tip length, can vary all the critical dimensions of most SMT foot prints on a wide variety of ceramic packages.
Base Model: Manual Micrometer Flex System
Standard Pneumatic Press, Manual stand off height control Flex tool, centering station and loader
Interchangeable Foot length
Capable of forming Flat packs and Quad packs
Manual Inch/Metric height adjustment
Centering via External Centering station
Loading into the tool via the Loading arm
80 -100 PSI air required
Adjustable tip-to-tip length using hand wheel and precision ball screw with digital readout and anti-backlash feature.
Standard adjustable cut length depending on the part/package size for the standard FLEX is .450" to 3.0" max.
