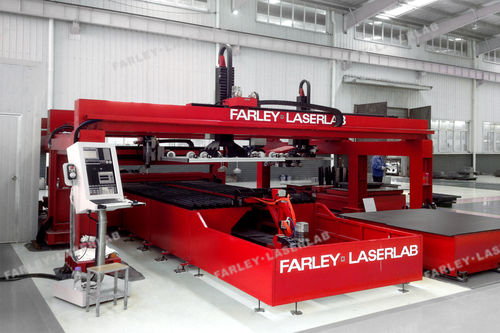

● Consist of welding part, steel sheet position structure, sheet dragging structure and automatic feeding robot hand
● Each axis is transmitted by high precision pinion and rack and ball screw
● High efficiency transmission
● Equipped with weld tracking system to make effective compensation for weld excursion
● Equipped with high precision magnetic separator to ensure transmitting one steel sheet at a time
● Especially for tailor-welding cold-roll steel sheets and hot galvanized steel sheets
X-axis Stroke
2100mm
Y-axis Stroke
20mm
Z-axis Stroke
100mm
Position Structure Stroke
150mm
Positioning Accuracy
0.08/1000mm
Repeated Positioning Accuracy
0.05mm
Moving Speed
30m/min
Focal Length
250-300mm
Steel Sheet Thickness
0.6-3mm
Steel Sheet Width
250-2000mm
Steel Sheet Length
600-3000mm
Welding Speed
5000-10000mm/min
Welding Flatness
≤0.10mm/m
Welding Straightness
≤0.15mm/m
Machine Size
11715*9320*3285mm
Weight
25000kg
CNC System
SIEMENS 840DSL
Capacity
80KVA
Phase
3
Voltage
380V
Frequency
50Hz
Protection Grade
IP54
