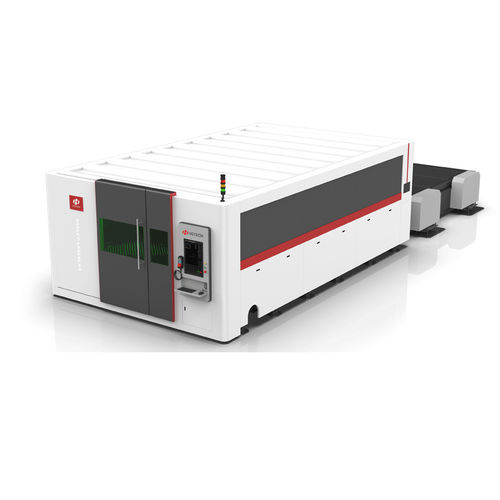

Fiber laser cutting system BF series3D laserfor metalsheet metal
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser, 3D laser
- Material
- for metal
- Product handled
- sheet metal
- Control type
- CNC
- Associated function
- multi-function, beveling
- Applications
- for industrial applications, for the automotive industry, for the food industry, for medical applications
- Phase
- three-phase
- Configuration
- 3-axis
- Other characteristics
- automatic, high-precision, high-speed, high-efficiency, 3D
- X travel
28 m
(91'10" )- Y travel
4 m
(13'01" )- Z travel
300 mm
(12 in)- Maximum cutting height
12 mm, 16 mm, 25 mm, 50 mm
(0.5 in, 0.6 in, 1 in, 2 in)- Cutting speed
80,000 mm/min, 110,000 mm/min
(52.493 in/s, 72.178 in/s)- Laser power
Max.: 30,000 W
Min.: 6,000 W
- Repeatability
0.03 mm
(0.0012 in)
Description
High precision: Bevel accuracy range is±0.5mm
High capacity: One-step shaping is done by cutting polygonal bevel
High quality: It’s noting difficult for bright cut
It is designed in elevated gantry structure and possess the characteristics of stable structure, high rigidity and high speed.
Integral welded structure bed: the beam is processed by multiple ageing treatments, and has high dynamic response. It is equipped with high-precision and high-efficiency structure system in transmission part, which has good rigidity and high precision, ensuring long-term high-precision operation of the equipment.
Independent R&D Fiber laser machine : Strong cutting and high efficiency, special laser cutting control system cooperatively developed with CNC system, which is a high-end high-tech fiber laser bevel cutting machine integrating laser cutting, precision machinery, CNC technology and other advanced technologies .
