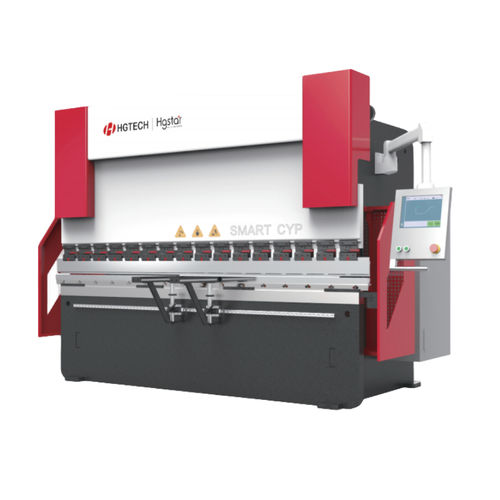

Hydraulic press brake Smart CYP SeriesCNC4-axis6-axis
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Control
- CNC
- Backgauge
- 4-axis, 5-axis, 6-axis
- Other characteristics
- precision, automatic, high-speed, workshop
- Press force
Min.: 400 kN
Max.: 3,000 kN
- Folding length
Min.: 1,600 mm
(63 in)Max.: 6,000 mm
(236.2 in)
Description
Its primary purpose is to bend workpieces into specific shapes or angles, using linear or rotational movements to achieve bending. The advantages of a bending machine are durability, increased speed, cost-effectiveness with various steel plates, pipes, and rebars. Additionally, this CNC bending machine can perform multiple actions.
Laser Bending Machine Parameter
Maximum Nominal Force
400KN / 630KN / 1000KN / 1250KN / 1600KN / 2000KN / 2500KN / 3000KN
Bending Length
1600mm / 2500mm / 3200mm / 4000mm / 5000mm / 6000mm
Throat Depth
250mm / 300mm / 350mm / 400mm
Maximum Opening Height
370mm / 400mm / 455mm / 475mm / 540mm
Oil Pump Displacement
10 / 13 / 20 / 25 / 32 / 40 / 50 ml/r
CNC System
CYBELEC Switzerland CNC control system for Y1, Y2, X, R axes and mechanical deflection compensation.
Rear Stopper Accuracy
±0.10
Hydraulic Value
BOSCH-REXROTH
Grating Ruler
ELGO
