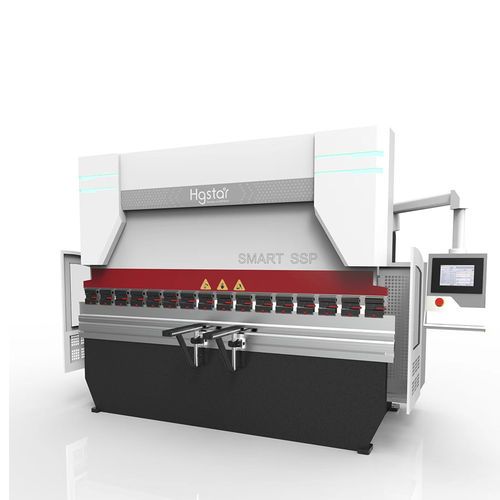

Hydraulic bending machine HG-SSP 135T/3200servo-electrictubeprofile
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, servo-electric
- Product handled
- tube, profile, sheet metal, bar
- Number of rollers
- 3 drive rollers, 4 drive rollers, 6 drive rollers
- Displacement
- horizontal
- Control
- CNC, automatic
- Associated function
- cutting, forming, drilling, forging, chamfering, cutting-ring assembly, embossing
- Number of axes
- 5-axis
- Other characteristics
- precision, rolling, high-efficiency, multi-function, automated loading/unloading
- Overall length
3,500 mm
(138 in)- Overall width
1,650 mm
(65 in)- Total height
2,600 mm
(102 in)- Weight
12 t
(13 us ton)
Description
1. Y1-Y2-X-R-V five-axis CNC
2. Equipped with the special CNC system for DA53T bending machine from DELEM, the Netherlands
3. Equipped with German BOSCH-REXROTH high-performance proportional servo hydraulic system
4. Configure the grating ruler of SPAIN FAGORcompany
5. Configure the oil pump of SUNNY, USAcompany
6. The mechanical downward inclined block deflection compensation worktable controlled by the DNC system
7. The back gauge is equipped with high-performance servo motor and ball screw
8. A set of standard molds
