Metal parts production line

high-speedroboticlaser

Product overview

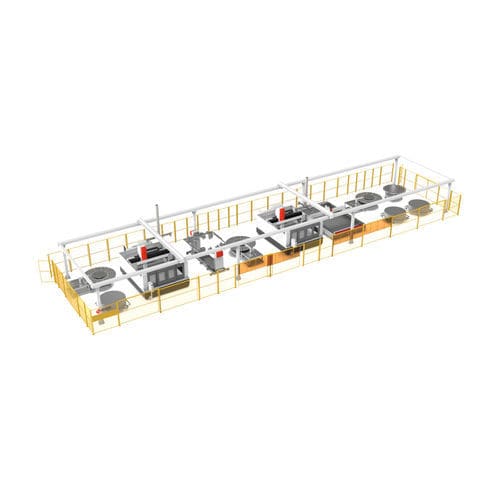

HGTECH Electrode Frame Machine Automatic Production Line is designed for automated processing of pole-frame sealing lines, kidney-shaped holes and positioning holes used in alkaline electrolyzers. The line integrates laser cutting, gantry milling and automated handling to ensure consistent geometry and surface condition required for downstream nickel plating.

Main components

• Secondary positioning platform
• Automated loading and unloading system
• Laser flow-channel hole cutting unit
• Gantry milling machine for flow-channel machining
• Automatic deburring station
• Dimensional inspection system

Equipment features

• Truss robot enables high-speed automated loading and unloading
• Ultra-bright laser cutting technology combined with gantry milling improves processing efficiency by approximately 30%
• Dedicated automatic centering tooling ensures accurate machining of positioning holes
• Automatic deburring precisely controls deburring depth and location to remove oxides and burrs on pole plates, improving nickel-plating adhesion

Technical specifications

• Application: Automated machining of pole-frame sealing lines, kidney-shaped holes and positioning holes for alkaline electrolyzers
• Brand: HGTECH
• Main functional modules: positioning, loading/unloading, laser hole cutting, gantry milling, deburring, dimensional inspection
• Key benefits: increased processing throughput (~30% with combined laser and milling), improved positioning accuracy, automated deburring to enhance plating quality
