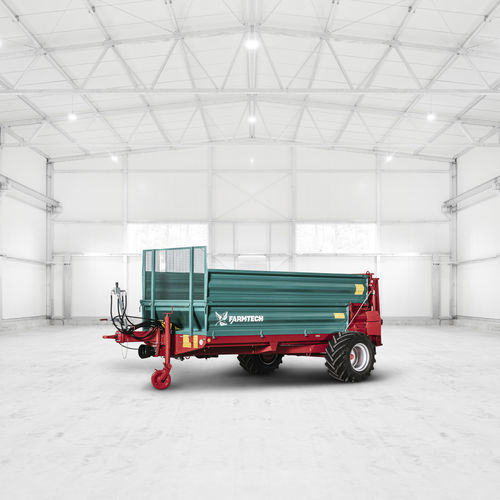

Due to the wide track and extremely low design the mountain spreader Minifex is particularly suitable for steep slopes. The high-quality axle design with deep-lying focus combines the highest stability and manoeuvrability – this makes the setback axle for optimal weight distribution and high load on the tractor. A continuous, torsionally rigid frame guarantees high load capacity, stability and ensures a long working life.
Trapézoïdal V-frame made of 5 mm métal sheet, high
drawbar hitch with adjustable towing eye D40 mm, wheel
jack with semi-automated turnover and spring, wheel chocks
Heavy duty ADR fixed axle with 6-stud rims, track 2100 mm,
axle load 7200 kg/axle at 25 km/h and 6700 kg/axle at 40
km/h, brake cam 300 x 90 mm
Single line Hydraulic brake System without regulator
(sélection according to country)
Framework profile 181 x 114 / 60 x 4 mm, steel sideboards 500
mm (FUHRMANN profile), collapsible boards opening, several
times glued wooden floor 30 mm thick, front plug-in view grill
(perforated sheet)
Hydraulic drive with hydraulic motor and chains stepless
speed control, forward and reverse flow, 2 high-strength
round steel chains (8 x 31 mm) with sturdy floor strips, floor
conveyor feed can be easily operated f rom the tractor cabin,
mechanic chain tensioner, WALTERSCHEID PTO drive shaft
with overload clutch 800 Nm, operating at 540 rpm,
continuous drive with shear boit clutch
