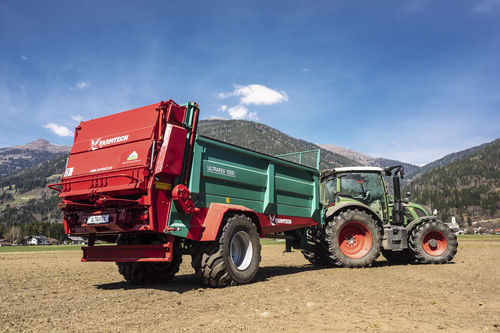

Chip spreader Ultrafex 1200

With models from 12 to 16 tonnes gross weight, these new machines are suitable to large farms, machine cooperatives, agricultural service contractors, as well as users in other industries. The sturdy self-supporting body has a vertical spreader unit and tightly sealing volume flap for silage transport. This series closes the gap between Farmtech’s middle class Superfex and professional Megafex lines. Frame from profile 300 x 100 x 5 mm, high drawbar hitch with fix towing eye D40 mm, landing gears (with gear box, double speed, three-stages), wheel chocks Heavy duty ADR-axIe with 10-stud rims, track 1950 mm, axle load 13000 kg/axle, brake cam 406 x 120 mm Dual line air brake installation (sélection according to country) U-framework profile 200 mm, steel sidewalls 1000 mm high, absolute smooth inner walls, steel floor 4 mm thick, plug-in view grill, hydraulic flap door, rear underride guard, mudguards Hydraulic drive with hydraulic motor and spur gear, stepless speed control, forward and reverse flow, 4 high-strength round steel chains (14 x 50 mm) with sturdy floor strips, floor conveyor feed can be easily operated f rom the tractor cabin, automatic chain tensioner, Wide-angle WALTERSCHEID PTO drive shaft over continuous drive shaft with overload and overrunning clutch, cam-type cut-out clutch 1500 Nm, operating at 1000 rpm
