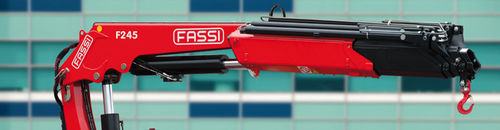

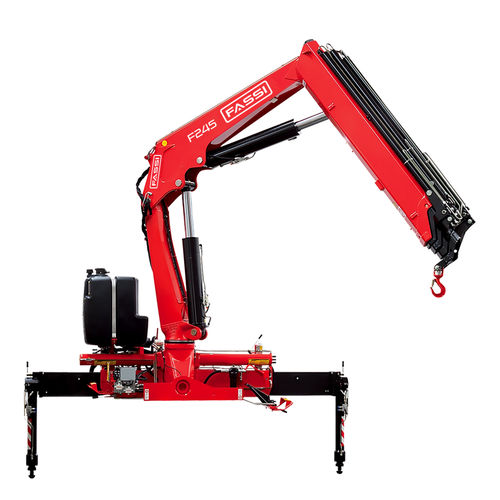

Truck-mounted crane F245A active

telescopicfor constructionlifting

The F245A active is a compact and functional crane, with a lifting capacity of up to 23.6 tm and a maximum hydraulic outreach of 22.60 m with jib. It is equipped with the FX500 control unit and S800 hydraulic distributor for ease of operation and reliability. The Active version, without linkage, features 420° rotation with rack and pinion, delivering versatility and reliable performance whatever the application. Strengths FX500 – Fassi Electronic Control A system that electronically controls the load conditions of the crane, of the hydraulic and manual extensions and of the winch, manages the lifting moment with the possibility to activate different work sectors, in relation to the stability condition of the vehicle/crane unit. In addition, it transmits and records the working data. FSC – Fassi Stability Control A Fassi system that continuously monitor and ensure the ideal crane working conditions versus the vehicle/crane stability, based on the position of the lateral extension supports of the outriggers. The system is available in 3 versions: L (Low), M (Medium) and S (Super) characterized by different design and functionality to suite all possible configuration of all the different crane models. CPM – Crane Position Monitoring A security system that detects if the lateral extension supports of the outriggers are fully retracted, both for manually and hydraulically extendable outrigger supports. Linked to the height check system of the crane, at rest in the transport position, it is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab.
