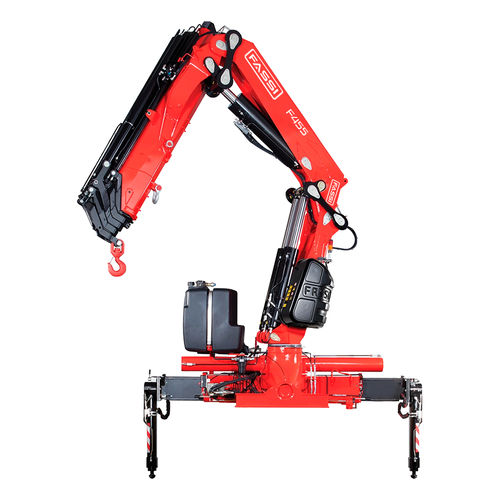

Truck-mounted crane F455A e-dynamic

telescopicfor constructionlifting

The F455A e-dynamic combines high performance and compactness in a configuration designed to maximise versatility and reliability. With a lifting capacity of up to 43.4 tm and a maximum outreach of 28.65 m with jib, this heavy-duty crane is suitable for a wide range of applications, while maintaining compact dimensions for optimal fitting to 3- or 4-axle trucks. The technological heart of the machine features the FX500 electronic unit, the D850 digital distributor, the ADC dynamic control system, and flow sharing, which ensures smooth and combined manoeuvres. In addition to this is the RCH/RCS radio controller, which allows intuitive, safe and precise control under all operating conditions. In mechanical terms, the crane is enhanced by Fassi's exclusive solutions: the ProLink double linkage system, the XP device, which increases power when necessary, and 430° rotation with rack and pinion, which guarantees operational freedom and long-term reliability. Optional High performances multifunction compensated hydraulic distributor bank with digital anti-saturation system thereby ensuring a superlative multifunction and proportional operation. Coupled with the Fassi XF (Extra Fast) system, it guarantees an extraordinary fluidity and speed of action. Fassi designed, developed and patented system which, combined with the electronic systems FX500, FX900 and FX990, uses a dedicated software to decide whether the load applied to the manual extension can be lifted or not, with reference to the foreseen loads. The system also provides the evaluation of the applied load.
