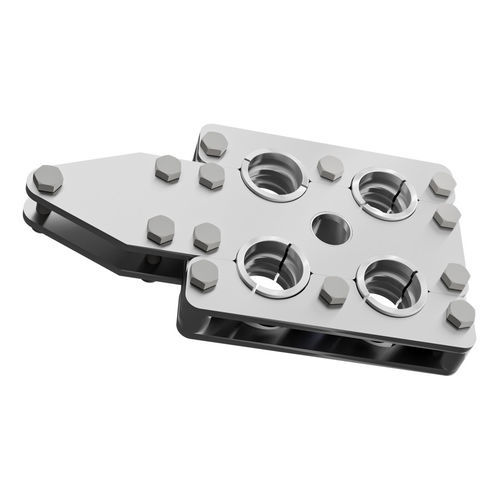

Retaining ring SHH series

Overview
Proper hose routing is essential to extend hose service life. TAIMI RINGS provide a lightweight, low-profile solution for organizing and supporting hydraulic hoses on mobile machinery operating in demanding environments such as forestry and mining.

Applications

• Construction equipment
• Industrial machinery
• Forestry machines
• Mining equipment

Items

• SHH-1208-566S
  L1: 246.2 mm
  L2: 238.1 mm
  L3: 233.3 mm
  H1: 19.1 mm
  Hoses nr. and size: 6 x 3/4" , 6 x 1/2"
  Suitable for underground mining machines hose installations.
• SHH-1608-526SPC
  L1: 271.7 mm
  L2: 152.4 mm
  L3: 248.0 mm
  H1: 19.1 mm
  Hoses nr. and size: 4 x 1" , 2 x 1/2" , 1 x 1/4"
  Suitable for forestry machines hose installations.
• SHH-1608-526W
  L1: 345.5 mm
  L2: 152.4 mm
  L3: 248.0 mm
  H1: 44.5 mm
  Hoses nr. and size: 4 x 1" , 2 x 1/2" , 1 x 1/4"
  Suitable for forestry machines hose installations.
• SHH-161208-515S
  L1: 246.2 mm
  L2: 247.6 mm
  L3: 239.7 mm
  H1: 19.1 mm
  Hoses nr. and size: 1 x 1" , 2 x 3/4" , 12 x 1/2"
  Suitable for underground mining machines hose installations.
• SHH-16-524K
  L1: 345.5 mm
  L2: 152.4 mm
  L3: 180.3 mm
  H1: 19.1 mm
  Hoses nr. and size: 4 x 1" , 1 x 1/4"
  Suitable for forestry machines hose installations.
• SHH-16-524P
  L1: 345.5 mm
  L2: 152.4 mm
  L3: 180.3 mm
  H1: 19.1 mm
  Hoses nr. and size: 4 x 1" , 1 x 1/4"
  Suitable for forestry machines hose installations.
• SHH-16-524SPC
  L1: 196.2 mm
  L2: 152.4 mm
  L3: 180.3 mm
  H1: 19.1 mm
  Hoses nr. and size: 4 x 1" , 1 x 1/4"
  Suitable for forestry machines hose installations.
• SHH-1684-527L
  L1: 407.0 mm
  L2: 172.5 mm
  L3: 244.8 mm
  H1: 76.2 mm
  Hoses nr. and size: 2 x 1" , 2 x 3/4" , 1 x 1/2" , 2 x 1/4"
  Suitable for forestry machines hose installations.
• SHH-1684-527LPC
  L1: 196.2 mm
  L2: 172.5 mm
  L3: 180.3 mm
  H1: 76.2 mm
  Hoses nr. and size: 2 x 1" , 2 x 3/4" , 1 x 1/2" , 2 x 1/4"
  Suitable for forestry machines hose installations.

Technical characteristics / specifications

• Material: Steel
• Surface treatment: CrIII
• Warning: This product can expose you to chemicals such as Lead or Nickel which are known to the State of California to cause cancer and birth defects or other reproductive harm.
