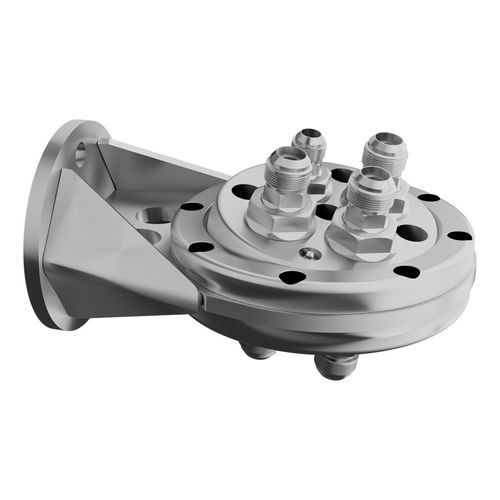

Oil rotary union SR series

multi-portindustrialhydraulic

Product series
Spherical hydraulic joints that allow hoses to swivel freely on both sides of the joint.

Overview
This design eliminates hose twisting and kinking, which are common causes of hydraulic hose failure. SWIROLLS joints are typically installed on harvester heads or rotating attachments, significantly reducing operational costs by minimizing maintenance, wear and hose replacement.

Applications

• Construction equipment
• Industrial
• Forestry
• Mining

Items (part numbers and main dimensions)
Header: PartNumber | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | L5 (mm) | H1 (mm) | H2 (mm) | Nr. and thread of ports
SR4S-JJ-502 | 532 | 100 | 100 | 50 | 24.5 | 25 | 76 | ISO 8434-2 (JIC 37°): 1 5/16"-12 (3 ports); 1 1/16"-12 (1 port)
SR4S-JJ-504 | 532 | 100 | 100 | 50 | 24.5 | 25 | 76 | ISO 8434-2 (JIC 37°): 1 5/16"-12 (3 ports); 3/4"-16 (1 port)
SR4S-JJ-510 | 216 | 245 | — | — | — | 127 | 180 | ISO 8434-2 (JIC 37°): 1 5/8"-12 (1 port); 1 5/16"-12 (1 port); 1 1/16"-12 (2 ports)
SR4S-PP-504 | 532 | 100 | 100 | 50 | 24.5 | 25 | 76 | ISO 8434-6 (BSP male): 1" (3 ports); 1/2" (1 port)
SR4S-PP-505 | 532 | 100 | 100 | 50 | 24.5 | 25 | 76 | ISO 8434-6 (BSP male): 1" (2 ports); 3/4" (2 ports)
SR4S-PP-506 | 532 | 100 | 100 | 50 | 24.5 | 25 | 76 | ISO 8434-6 (BSP male): 1" (2 ports); 3/4" (1 port); 1/2" (1 port)
SR4S-PP-508 | 532 | 100 | 100 | 50 | 24.5 | 25 | 76 | ISO 8434-6 (BSP male): 1" (3 ports); 3/4" (1 port)
SR5-PP-507 | 532 | 100 | 100 | 50 | 24.5 | 25 | 76 | ISO 8434-6 (BSP male): 1" (2 ports); 3/4" (1 port); 1/2" (2 ports)

Notes / Safety
Warnings: This product can expose you to chemicals such as Lead or Nickel which are known to the State of California to cause cancer and birth defects or other reproductive harm.

Features / technical specifications

• Function: spherical hydraulic joints allowing hoses to swivel freely on both sides, preventing hose twisting and kinking
• Typical installation: harvester heads and rotating attachments
• Benefit: reduces maintenance, wear and hose replacement, lowering operational costs
• Available port standards: ISO 8434-2 (JIC 37°) and ISO 8434-6 (BSP male) with multiple port/thread configurations per part number
• Main listed dimensions (example values shown per part): L1 up to 532 mm; L2 typically 100 mm (varies by model); H1 examples 25 mm; H2 examples 76 mm; other dimensions vary by part number
• Multiple part numbers available to suit different port/thread configurations and layouts (see items list above)
