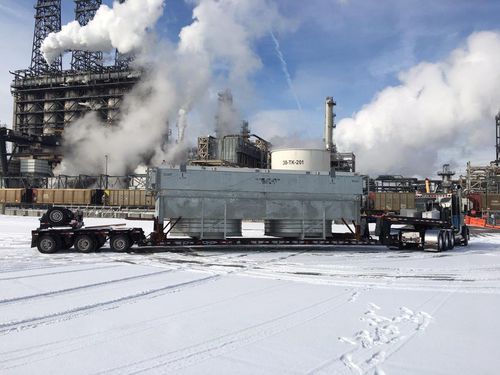

Low-loader semi-trailer MegaMAX

gooseneckplatformfor wind turbine

Overview
The extra-low double-drop trailer MegaMAX is engineered for tall, wide and exceptionally bulky freight such as industrial components, heavy machinery, rail vehicles, oversized containers and large crates. North America specification ensures DOT dimensional compliance and operational suitability across the USA and Canada.

Deck types & features
Available with two interchangeable decks:

• Stretch deck
  • Loaded deck height: 13.8” (lowest in class)
  • Closed deck length: 25’ — extends to 42’ in 20” increments
  • Deck inserts available: 79”, 118”, 158” to further extend length
  • 8” drive height at 3.9” ground clearance
  • Multiple shims to precamber deck depending on load
  • Outer beam extension system; removable center deck covers, outriggers & container fittings available
• Minideck
  • Running height: 10.8”
  • Total deck length: 25’ (usable length 22’6” indicated)
  • Full-steel construction across full width for maximum point loads, jacking and skidding operations
• Hydraulic detachable gooseneck with 110” rear swing clearance (ramps included)
• Air Honda pony motor and wet line connection for hydraulic functions

Operational advantages
The MegaMAX combines high axle stroke and large steering angle for exceptional maneuverability and stability on uneven terrain. Compressed length of 53’ and width of 100” (without outriggers) allow empty travel without escorts or special permits in many North American configurations.

Safety & protection
Fully metalized, zinc-plated frame for enhanced corrosion protection. Multiple lashing rings and load fixing points secure diverse cargo types during transport.

Applications

• Transformers, generators, vessels, compressor skids
• Construction machines: excavators, recycling, milling, crushing, screening equipment
• Wind energy components: nacelles, tower sections, generators
• Cranes, counterweights and crane components
• Oversize containers and large crates
• Railway cars and wagons
• Agricultural machines: combine harvesters, tractors, beet harvesters, silage wagons, liquid manure tanks

Technical specifications

• Model: MegaMAX (double-drop, extra-low)
• Configuration: 3-axle or 4-axle with pendulum axles; optional steerable fourth pin-on flip axle
• Deck options: Stretch deck and Minideck (interchangeable)
• Stretch deck: 25’ closed — extends to 42’ in 20” increments; loaded deck height 13.8”
• Minideck: 25’ total deck length; running height 10.8”
• Deck inserts: 79”, 118”, 158” available
• Drive height: 8” drive height at 3.9” ground clearance (both decks)
• Hydraulics: hydraulic detachable gooseneck with continuous height adjustment; ramps included; Air Honda pony motor and wet line connection
• Frame: fully metalized, zinc-plated
• Load securing: multiple lashing rings, load fixing points; removable center deck covers, outriggers & container fittings available
• Transport compliance: designed to meet DOT dimensional requirements for North America
• Empty travel: compressed length 53’ total; width 100” without outriggers (permits/escorts dependent on jurisdiction)
