Hybrid connector COMBOSTAK®

board-to-boardPCBpower

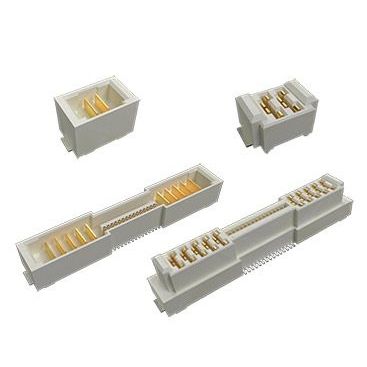

HYBRID AND MEDIUM POWER SOLUTION ComboStak® and PowerStak® are compact, hybrid (signal and power) and power board-to-board connectors. ComboStak® combines existing, BergStak® 0.8mm pitch signal pins with 2.00mm pitch power blades. PowerStak® is the power only version. Both ComboStak® and PowerStak® provide high signal and current density with a wide range of stack heights. High current carrying capacity with miniaturized shape Up to 20A per power blade 2 to 10 power blades on 2.0mm pitch 6 to 140 signal pins on 0.8mm pitch Reliable 4 contact point power contact design Signal speed is up to 12Gb/s 5mm to 20mm stack heights (1.0mm increments) Self-alignment for blind mating Meets USCAR-2 V2 Shock and Vibration 2.00mm pitch for power system Power distribution and signal control in one connector Support stack height from 5mm to 20mm, power position from 2 to 10pos and signal position from 6 to 140pos Scoop proof housing with ±0.9mm misalignment tolerance Housing with metal hold down Outstanding 4 points contact design Optional locating pegs High temperature LCP material Lead-Free, RoHS and Halogen-free compliant High current carrying capacity with miniaturized shape to save space and cost Signal pin continues to match BergStak® 0.80mm Supports a wide range of applications Supports secure blind and automatic assembly with cost effective Guarantees high PCB retention force Offers good contact performance and low mating force Enables easy manual assembly Supports operating temperatures to 125°C Meets environmental, health and safety requirements
