Overview
Federal Signal offers the FSIoT family to add managed cellular communications to siren systems. Devices connect to a private, managed FSIoT cellular network and remove the need for separate SIMs, data plans or network provisioning. Units are pre-configured and arrive ready to operate.

Features

• Add secure cellular communications to existing siren controllers
• Managed private cloud service with no direct Internet access
• Can replace legacy LMR radios or provide a redundant secondary channel
• LTE Cat M1 cellular module
• USB and serial interfaces for integration
• Powered via USB or wide-input voltage power port
• On-board LEDs for signal strength, power, network connection, CPU, TX and RX

Product details

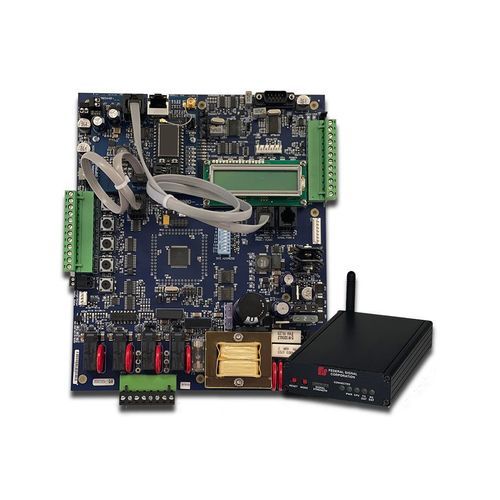

The FSMODEM-CELLBASE is an FSIoT gateway modem for Base Station/SS2000+. It provides cellular connectivity to a base station via USB or serial connection and can use a cellular antenna or be connected to an existing Ethernet network when antenna runs are impractical. FSIoT is a managed private network without direct Internet access. The tri-carrier modem automatically selects the best signal among major US carriers. FSMODEM-CELLBASE can be used with the SS2000+ Series C local activation point as an alternative to a conventional LMR radio.

The FCT and FC kits offer retrofit options for Federal Signal FCT and FC siren controllers to replace legacy LMR solutions or add secure cellular as a redundant channel.

SKU Specifications

• FSMODEM-CELLBASE — FSIoT Gateway Modem for Base Station/SS2000+
• UCT-WLN-U-FSIOT — Universal Controller for Whelen with FSIoT and UHF Transceiver
• UCT-WLN-H-FSIOT — Universal Controller for Whelen with FSIoT and VHF Transceiver
• UCT-WLN-FSIOT — Universal Controller for Whelen with FSIoT, No Radio
• Q-DC-FSIoT — FSIoT Upgrade Kit for DC Siren Controller (VHF/UHF radio not included)
• CELL-ANT-LP — Low Profile Omnidirectional Cellular Antenna
• UCT-WLN-FSIOT-RXU — Universal Controller for Whelen with FSIoT and UHF Receiver
• UCT-WLN-FSIOT-RXH — Universal Controller for Whelen with FSIoT and VHF Receiver
• Q-UVRI-B-FSIOT — FSIoT Upgrade Kit for UVRI-B Siren Controller
• Q-UVIC-FSIOT — FSIoT Upgrade Kit for UVIC Siren Controller
• Q-UV-FSIOT — FSIoT Upgrade Kit for UV Siren Controller
• Q-FCT-FSIoT-RXU — FSIoT Upgrade Kit for FCT Siren Controller with 1-way UHF Receiver
• Q-FCT-FSIoT-RXH — FSIoT Upgrade Kit for FCT Siren Controller with 1-way VHF Receiver
• Q-FCT-FSIoT — FSIoT Upgrade Kit for FCT Siren Controller (VHF/UHF radio not included)
• Q-FC-FSIOT-RXU — FSIoT Upgrade Kit for FC Siren Controller with 1-way UHF Receiver
• Q-FC-FSIOT-RXH — FSIoT Upgrade Kit for FC Siren Controller with 1-way VHF Receiver
• Q-FC-FSIoT — FSIoT Upgrade Kit for FC Siren Controller (VHF/UHF radio not included)
• Q-DC-FSIoT-RXU — FSIoT Upgrade Kit for DC Siren Controller with 1-way UHF Receiver
• Q-DC-FSIoT-RXH — FSIoT Upgrade Kit for DC Siren Controller with 1-way VHF Receiver
• Q-UVIC-B-FSIOT — FSIoT Upgrade Kit for UVIC-B Siren Controller
• CELL-ANT-HP-35 — High Profile Omnidirectional Cellular Antenna, 35 ft. cable

Technical specifications

• Cellular module: LTE Cat M1
• Interfaces: USB and Serial port
• Power: USB power or wide input voltage power port
• Indicators: On-board LEDs for Signal Strength, Power, Network Connection, CPU, Transmit and Receive
• Network: Managed private FSIoT cloud network without direct Internet access
• Carrier support: Tri-carrier modem that auto-selects the best signal among major US carriers
• Deployment: Devices pre-configured before shipment and ready to operate out of the box
• Connectivity options: Cellular antenna or existing Ethernet network
