5-axis CNC machining center PICOMAX® 550 PRO
verticalfor glassfor steel

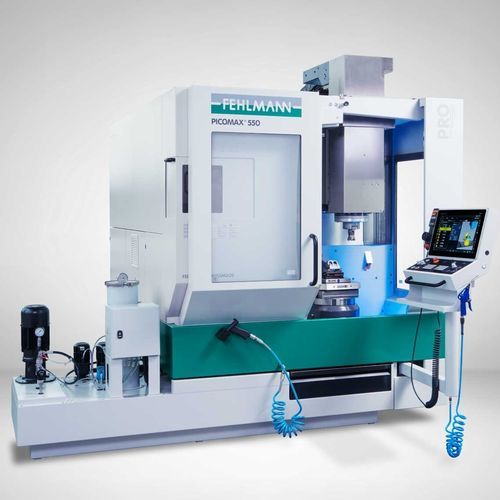

5-axis CNC machining center - PICOMAX® 550 PRO - FEHLMANN - vertical / for glass / for steel
5-axis CNC machining center - PICOMAX® 550 PRO - FEHLMANN - vertical / for glass / for steel
5-axis CNC machining center - PICOMAX® 550 PRO - FEHLMANN - vertical / for glass / for steel - image - 2
5-axis CNC machining center - PICOMAX® 550 PRO - FEHLMANN - vertical / for glass / for steel - image - 3
5-axis CNC machining center - PICOMAX® 550 PRO - FEHLMANN - vertical / for glass / for steel - image - 4
5-axis CNC machining center - PICOMAX® 550 PRO - FEHLMANN - vertical / for glass / for steel - image - 5
5-axis CNC machining center - PICOMAX® 550 PRO - FEHLMANN - vertical / for glass / for steel - image - 6
5-axis CNC machining center - PICOMAX® 550 PRO - FEHLMANN - vertical / for glass / for steel - image - 7
Add to favorites
Compare this product
Go to the FEHLMANN website for more information

Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Machined material
for steel, for aluminum, for aluminum alloys, for cast iron, for stainless steel, for copper, for non-ferrous metals, for light alloys, for titanium alloys, for brass, for plastics, for glass
Structure
with rotary tilting table
Spindle mount
HSK-E50, ISO 30
Number of tool stations
30 tools, 60 tools
Associated functions
milling, drilling, tapping, engraving
Certifications
ISO 9001
Applications
for the aeronautical industry, for the automobile industry, for molds, for the aerospace industry, for turbine blades, for medical applications, for the mold industry, for titanium, for small parts production, for watchmaking, optical, CAD/CAM, for aeronautics, dental, for small workpieces
Other characteristics
high-speed, high-performance, compact, precision, CE, automated loading/unloading, with pallet changer, for production, all-in-one, with pneumatic clamping, wet, with electronic control
X travel

550 mm
(21.65 in)

Y travel

400 mm
(15.75 in)

Z travel

400 mm
(15.75 in)

Rotational speed

12,000 rpm, 20,000 rpm, 30,000 rpm
(75,398 rad.min-1, 125,664 rad.min-1, 188,496 rad.min-1)

Power

9.7 kW, 10.5 kW, 13.5 kW
(13.19 hp, 14.28 hp, 18.35 hp)

Workpiece max height

370 mm
(15 in)

Table rotation (C axis)

360 °

Work feed X-axis

Min.: 1 mm/min
(0 in/s)

Max.: 30,000 mm/min
(19.69 in/s)

Work feed Y-axis

Min.: 1 mm/min
(0 in/s)

Max.: 30,000 mm/min
(19.69 in/s)

Work feed Z-axis

Min.: 1 mm/min
(0 in/s)

Max.: 30,000 mm/min
(19.69 in/s)

Weight

5,250 kg
(11,574.27 lb)

Overall length

2.6 m
(8'06" )

Overall width

2 m
(6'06" )

Overall height

2.7 m
(8'10" )

Description

FEHLMANN PICOMAX 550 PRO - new CNC machine for modern 5-axis machining. Compact, universally applicable and user-friendly - quality that makes a difference. The PICOMAX 550 PRO offers an economical and technologically advanced solution for versatile 5-axis machining. Even the basic version of the machine is designed for universal 5-axis milling with positioning as well as for 5-axis simultaneous machining. The well-thought-out compact design ensures operating ergonomics, perfect accessibility to all relevant machine components and maximum flexibility. The tool magazine with integrated tool management can be conveniently loaded from the front during machining. The generous swivel range and the direct, backlash-free and dynamic cooled torque drives enable precise machining of a wide range of demanding parts. The latest generation Heidenhain TNC 7 control with touch operation and CAM connection provides the necessary functionality. The combination of easy operation, efficiency, precision, compactness and flexibility makes the new PICOMAX 550 PRO the ideal solution for a wide range of manufacturing tasks - for small series, in dynamic 5-axis precision cutting and for vocational training.
