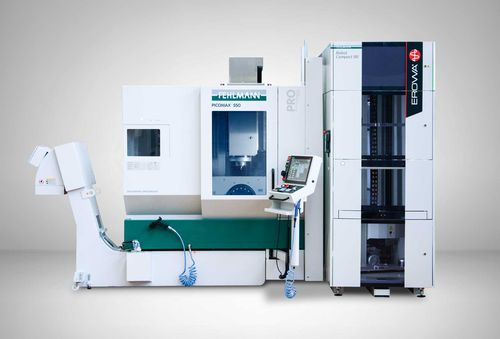

5-axis milling center PICOMAX® 550 PRO

verticalroboticcompact

Product overview Efficient CNC machining with the PICOMAX® 550 PRO Automation: a compact machining center designed for fast, precise part production with integrated automation for automatic loading and unloading. The system increases process availability and supports unattended operation while maintaining operator access.

FEHLMANN MCM™ (Milling Center Manager) FEHLMANN MCM™ is the in-house control and scheduling platform that coordinates machine and robot. Jobs, zero points and parameters are managed via a clear job table on a Windows interface. Operators can adjust job order or individual parameters during operation to retain flexibility. The MCM supports functions such as tool-breakage monitoring, NC program management and system event logging; an optional SMS alarm is available. The machine and MCM are developed together to ensure integrated support and safety.

Complete system from a single source

• Systems are commissioned and tested at the manufacturer with customer-specific configuration.
• Fehlmann develops and manufactures both the machine and the MCM™; standard robots are used for part handling.
• Practical features and ease of use reflect customer feedback integrated into the standard equipment.

References & applications

• Mold and tool manufacturing
• Parts production for general mechanics and micromechanics

Technical characteristics / specifications

• Model: PICOMAX® 550 PRO (Automation configuration)
• Automation: integrated pallet changer for automatic loading/unloading
• Control options: Heidenhain control or FEHLMANN MCM™ (Windows job table)
• MCM functions: machine and robot control, job scheduling, online parameter changes
• Monitoring and program handling: tool-breakage monitoring, NC program management, system event logging
• Parts handling: integration with standard robots for automated loading
• Operation modes: suitable for unattended night/weekend operation to increase availability
• System delivery: commissioned and tested in factory with customer-specific configuration
• Manufacturer support: machine and MCM developed and produced in-house for integrated support
