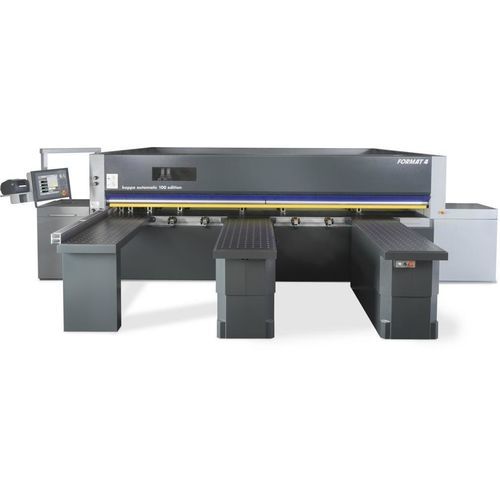

Circular saw kappa automatic 100 edition

panelwoodfor panels

Short description
Compact, efficient, precise – Pressure beam saw / Beam saw kappa automatic edition. The kappa automatic edition features a steel pressure beam and a solid material pusher for long life, high-end cutting edges, maximum precision and repeatability. New touch-screen operating panel, cutting direction against the fence and powerful saw units make the machine suitable for high-performance production.

Main functional overview

• Steel pressure beam and robust material pusher for high stability and longevity.
• Main saw supported by a powerful motor (100 edition: 13.5 kW / 18 HP) with large saw blade diameter and high cutting performance.
• Separate scoring unit (1.1 kW) with 150 mm scoring blade diameter and adjustable during operation.
• Control terminal with touch screen for intuitive operation.
• Variable feed speed for the saw carriage (1–60 m/min).

Highlights

• Cutting length options: 3200, 3800, 4300 mm.
• Saw blade projection (100 edition): 95 mm.
• High repeatability and premium mechanical engineering.
• Numerous optional high-tech specification packages and automation solutions.
• Premium design and user comfort for industrial continuous operation.

Detailed features

• Individually controllable air cushion tables: three separate fans for side tables providing individual control for convenient panel handling and resource-saving operation.
• Veneer fences: fences suitable for panels with veneer projecting edges to ensure dimensional accuracy for veneered panels.
• Saw carriage with main blade and scoring unit running on ground and hardened round guides for extremely smooth movement and exact cutting angle. Cutting height adjustable manually, pneumatically or by electro-motors.
• Motorised scoring blade setting (optional): servo-driven adjustment with accuracy to hundredths of a millimetre, adjustable via the control terminal for tear-free results.
• Additional operating terminal on the air cushion table to save time and increase productivity.
• Roller track supports material pusher transport and guarantees precise feed of panel material to the cutting line.
• Double guided measuring system on the material pusher with magnet measurement band and solid material grips driven by a precise servomotor for maximum repeatability.
• Saw carriage drive: rack and pinion system with variable carriage speed (1–60 m/min) guaranteeing constant cutting quality.
• Pressure device: rollers press the workpiece against the fence to guarantee an exact 90° angle for workpiece widths 50–1200 mm.
• Pressure beam: lowers before the cut, presses the workpiece onto the saw table, holds the workpiece during the cut, extraction of dust/chips, manually regulable up to max. 3 bar.
• Simple, intuitive operation: Windows-based software guidance, optional cutting optimisation software and optional label printer for part labelling and production reliability.
• Optional front lifting table system: fully automatically controlled scissor lifting tables replace standard side tables to increase automation, efficiency and operator comfort.
• Workpiece transport: solid steel clamps, pneumatically controlled, for safe and damage-free clamping of panel stacks and small panels (opening height up to 85 mm).

Caractéristiques / spécifications techniques

• Cutting length (options): 3200 mm, 3800 mm, 4300 mm.
• Main saw blade diameter: 350 mm.
• Main saw motor (kappa automatic 100 edition): 13.5 kW (18 HP).
• Saw blade projection (100 edition): 95 mm.
• Separate scoring unit motor: 1.1 kW.
• Scoring blade diameter: 150 mm.
• Variable feed speed (saw carriage): 1–60 m/min.
• Control: touch screen control terminal (Windows-based software guidance).
• Pressure beam: manual regulation up to 3 bar; integrates dust/chip extraction from saw area.
• Material pusher: double-guided, magnet measurement band system, servo-driven for high repeatability.
• Air cushion side tables: three fans, individually controllable.
• Optional motorised scoring blade adjustment: accuracy to 0.01 mm (via servomotors).
• Workpiece clamp opening height (typical option): up to 85 mm.
