Product overview

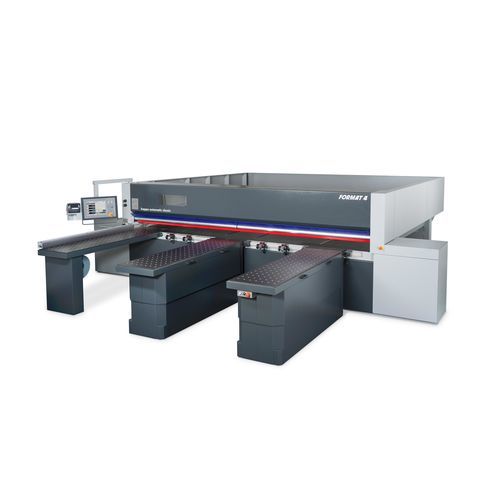

The compact beam saw designed for efficient panel sizing in woodworking and industrial panel processing. The FORMAT4 kappa automatic classic delivers precise crosscutting and ripping in a reduced footprint, available with 3,200 mm or 4,300 mm cutting length. The main saw unit is driven by a 7.5 kW motor (max blade Ø 320 mm, blade projection 68 mm) and the machine is operated via an intuitive Windows-based touchscreen.

Key features

• Compact beam saw optimized for efficient panel sizing
• Cutting lengths: 3,200 mm and 4,300 mm
• Main saw unit: 7.5 kW motor; max saw blade Ø 320 mm; blade projection 68 mm
• Two movable support tables with air cushion function (three separate fans)
• Pressure device (rollers) ensuring exact 90° for crosscutting
• Intuitive touchscreen with Windows-based control software
• Optional front lifting table automation for stack handling (up to 240 mm)
• Saw carriage with main and scoring unit running on hardened round guides for smooth, precise movement
• Double-guided measuring system on the material pusher (magnet measurement band, high-precision servomotor)
• Material pusher positioned towards cutting axis for reliable loading independent of panel thickness
• Roller track for precise feed of panels to the cutting line
• Workpiece transport with solid steel pneumatic clamps, opening height 80 mm
• Efficient software options (e.g. Ardis cutting optimisation) and optional label printer for process reliability

Detailed features
The kappa automatic classic can be equipped with automatic front lifting tables that replace the standard side tables with solid scissor lifting tables, enabling temporary storage and automatic processing of panel stacks up to 240 mm. The side tables use three separately controlled fans for the air cushion, ensuring smooth panel handling and reduced friction. An additional operating terminal on the air cushion table is available to save time during production. The saw carriage drive speed is adjustable from 1–40 m/min via the control panel; rack-and-pinion guidance guarantees consistent cutting quality. The pressure beam lowers before the cut to press the workpiece onto the saw table, supports dust and chip extraction and its pressure can be manually regulated up to 3 bar. Cutting optimisation software (e.g. Ardis) can generate labels for each workpiece (order number, use, CNC program, edge-banding instructions) to support traceability and automation.

Technical specifications

• Model series: kappa automatic classic
• Main saw motor: 7.5 kW
• Max. saw blade diameter: 320 mm
• Saw blade projection: 68 mm
• Cutting lengths: 3,200 mm and 4,300 mm
• Air cushion side tables: 3 separate fans; individually controllable
• Front lifting table stack capacity: up to 240 mm
• Workpiece clamp opening height: 80 mm
• Workpiece width for pressure device: 50–1,200 mm
• Saw carriage speed: variable 1–40 m/min
• Pressure beam: manual regulation up to 3 bar; also provides dust/chip extraction
• Measuring system: double guided panel pusher with magnet measurement band and high-precision servomotor
• Optional software: Ardis cutting optimisation; optional label printer
