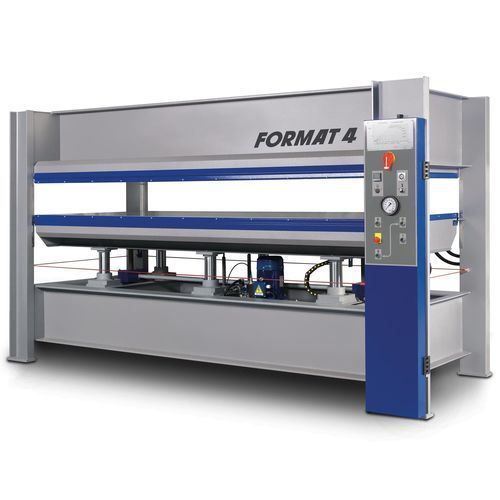

Hot laminating machine HVP Typ 3

industrialhigh-performancepressure

Overview
Heated veneer presses for a range of production scales. The Format4 HVP series offers modular heating plate options and industrial-grade components for continuous operation in panel and veneer production.

Variants / Models

• HVP Typ 1: Elkom® electric heating platens. Pressing temperature up to 120 °C (248 °F).
• HVP Typ 2: Warm water heating. Pressing temperature up to 90 °C (194 °F).
• HVP Typ 3: Thermo oil heating. Pressing temperature up to 120 °C (248 °F); higher temperatures on request.

Key features & options

• Elkom® electric heating platens: loading support with 12 mm aluminium sheet housing the electric resistance.
• Warm water heating plates: aluminium surface for smooth finish and heat transfer, steel sheet, steel coils for warm water circulation, support tubes and thermal insulation (wood fibre plate).
• Thermo oil heating (fabricated steel plates): aluminium surface layer, steel sheet, steel coils, support tubes and thermal insulation; fabricated steel platen rated for max 5 kg/cm².
• Synchronized rack and pinion guide: large rail guides and torsionally rigid joints ensure parallel lift of pressing plates.
• Optional sensor monitoring: magnetic sensors monitor parallel lift to prevent uneven pressure along the platen length.
• Raised cylinder guide: hydraulic cylinder casing raised so cylinder remains coated in oil, reducing seal drying and extending service life.
• Multiple specification packages and customer-specific production solutions available.
• Industrial design with components selected for continuous high-performance operation.

Benefits

• Stable performance in industrial continuous operation.
• Production processes adaptable to customer requirements.
• Engineering precision and component selection for reliable results.
• High operator comfort and predictable productivity.

Technical specifications

• Model family: HVP (Heated Veneer Press) — displayed variant: HVP Typ 3.
• Heating options: Electric (Elkom®), Warm water circulation, Thermo oil.
• Electric plate detail: 12 mm aluminium sheet on loading support housing the electric resistance.
• Warm water plate composition: aluminium surface, steel sheet, steel coils for circulation, support tubes, thermal insulation (wood fibre plate).
• Thermo oil / fabricated steel plate: aluminium surface, steel sheet, steel coils, support tubes, thermal insulation (wood fibre platen); fabricated steel platen maximum pressure 5 kg/cm².
• Typical pressing temperatures: up to 90 °C for warm water; up to 120 °C for Elkom® electric and thermo oil (higher on request).
• Optional magnetic sensor monitoring for parallel lift and even pressure distribution.
• Guide system: synchronized rack and pinion with large rail guides and torsionally rigid joints for parallel platen lift.
• Hydraulic cylinder protection: raised cylinder guide to keep cylinders coated in oil and extend seal life.
