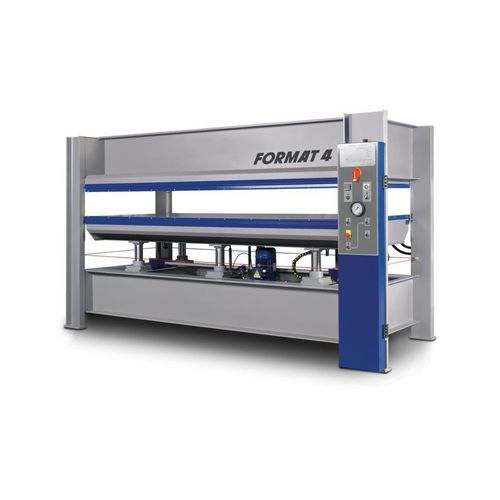

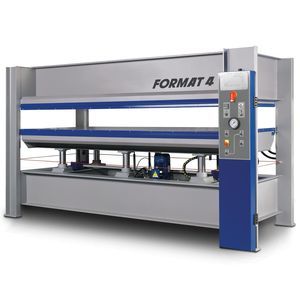

Hot laminating machine HVP Typ 1

industrialhigh qualityhigh-precision

Overview
Heated veneer presses for industrial and workshop applications. The HVP series delivers controlled heating and uniform pressure distribution for high-quality veneer pressing with cost-effective operation.

FORMAT4 – In a class of its own
Precision engineering and user-oriented design from FORMAT4 provide reliable performance and straightforward integration into production lines. FORMAT4 supports planning, equipment selection and financing for professional workshops.

Variants / Models

• HVP Typ 1 — With Elkom® electric heating platens; Pressing temperature up to 120° C (248°F)
• HVP Typ 2 — With warm water heating; Pressing temperature up to 90° C (194°F)
• HVP Typ 3 — With Thermo oil heating; Pressing temperature up to 120° C (248°F)

Key features and highlights

• Constant high performance in continuous industrial operation
• Customer-specific optimized production solutions
• Solid construction with premium components
• Multiple specification packages with high‑tech options
• Complete engineering precision
• Ergonomic user interface and handling
• Award-winning industrial design
• Quality and precision from Austria
• Uncompromised productivity
• Comprehensive service package before, during and after purchase
• Tailor-made financing solutions

Detailed features (selected)
Heated Veneer Press with Elkom® electric heating platens (HVP Typ 1)
The electric platen consists of a loading support and a 12 mm thick aluminium sheet housing the electric resistance for uniform heating and fast temperature control.

Heated Veneer Press with warm water heating (HVP Typ 2)
The platen construction includes:

• Aluminium surface layer for optimal finish and heat transfer
• Steel sheet
• Steel coils for warm water circulation
• Support tube pipes
• Thermal insulating layer (plate made of wood fibre)

Heated Veneer Press with Thermo oil heating (HVP Typ 3)
The pressing platen is available with thermal oil heating. Construction: fabricated steel platen rated for a maximum pressure of 5 kg/cm². Temperature: standard maximum operating temperature 120° C; higher temperatures available on request. Platen components: aluminium surface for finish and heat transfer, steel sheet, steel coils (warm water circulation), support tube pipes and thermal insulation (wood-fibre plate).

Other functional features

• Synchronized rack-and-pinion guide — large rail guides and torsionally rigid joints ensure parallel lift of the pressing plates
• Optional sensor monitoring — magnetic sensors check plate parallelism and prevent uneven pressure distribution
• Raised cylinder guide — upper lip of the hydraulic cylinder casing is raised so the cylinder remains coated in oil, preventing seal drying and extending service life

Technical specifications

• Series: HVP (Heated Veneer Press)
• Available variants: HVP Typ 1, HVP Typ 2, HVP Typ 3
• HVP Typ 1 heating: Elkom® electric heating platens; platen includes 12 mm aluminium sheet housing electric resistance
• HVP Typ 1 pressing temperature: up to 120° C (248°F)
• HVP Typ 2 heating: warm water heating (steel coils)
• HVP Typ 2 pressing temperature: up to 90° C (194°F)
• HVP Typ 3 heating: Thermo oil heating
• HVP Typ 3 pressing temperature: normally up to 120° C (248°F); higher on request
• Fabricated steel platen maximum pressure: up to 5 kg/cm²
• Platen construction: aluminium surface layer, steel sheet, steel coils (warm water circulation), support tube pipes, thermal insulation (wood-fibre)
• Optional: synchronized rack & pinion guide, magnetic sensor monitoring of plate parallelism, raised cylinder guide
• Designed for continuous industrial operation and customer-specific production solutions
