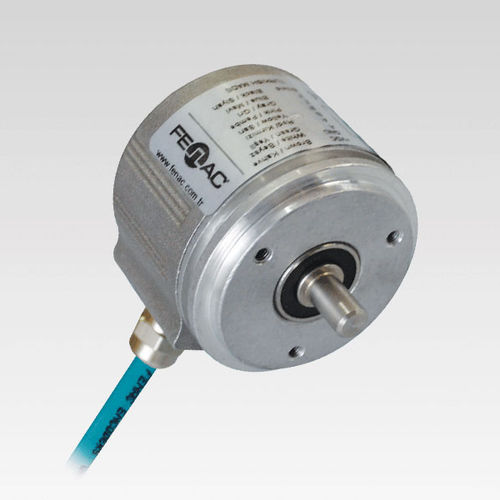

Incremental rotary encoder FNC 58S series
solid-shaftflangeanalog

incremental rotary encoder
incremental rotary encoder
Add to favorites
Compare this product


Characteristics

Type
incremental
Construction
solid-shaft, flange
Output signal
analog
Material
aluminum
Protection level
rugged, standard, IP65, IP67, IP54
Housing diameter

58 mm
(2.28 in)

Description

General Features •Industry 58 mm Standart Size, Servo Flange •Robust Mechanical and Electrical Construction •Protection up to IP67 •Up to 25.000 PPR max. •<300 kHz Frequency Flange Diameter: 58 mm, Supply Voltage : 5Vdc, 5-30Vdc, 10 - 30Vdc, Connection Type: 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, M12/4pin, M12/5pin, M16/7pin, M16/14pin, M23/12pin, Shaft Diameter : 6 mm, 8 mm, 10 mm, 12 mm, Pulse : 10, 16, 25, 30, 50, 60, 90, 100, 200, 250, 300, 360, 400, 500, 512, 600, 720, 800, 900, 1000, 1024, 1250, 1440, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000, 6000, 8192, 10000, 12500, 16384, 20000, 25000, Output Circuit / Push-Pull: A:1, AB:2, ABZ:3, AB+A'B:4, ABZ + A'B'Z':6, Product Group : Incremental Rotary Encoders, Analog Output Type

Catalogs

No catalogs are available for this product.

See all of FENAC ENGINEERING LTD.‘s catalogs
