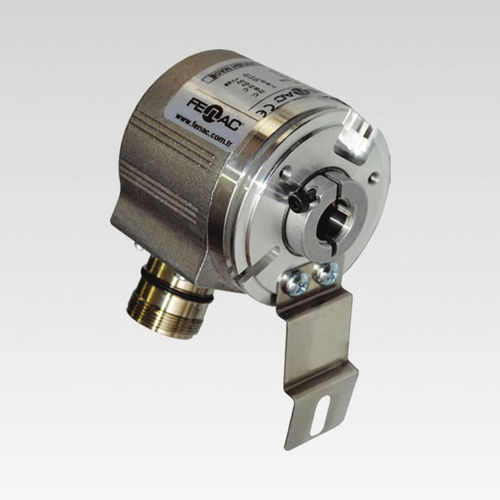

Absolute rotary encoder FNC AC 58E series

opticalmagnetichollow-shaft

General Features •Encoder single - or multiturn / CANopen •Magnetic Sensing •Optical single turn resolution: 12...19 bit (optional) •Magnetic single turn resolution: 9 ... 13 bit •Multi-turn 4...32 bit •Clamping flange or synchro flange •A permanent check of code continuity •Extreme resistance to shock and vibration •Resolution end zero points programmable Flange Diameter: 58 mm, Supply Voltage : 5Vdc, 5-30Vdc, Connection Type: 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M23/12pin, Shaft Diameter : 6 mm, 8 mm, 10 mm, 12 mm, Pulse Output Circuit / Push-Pull Product Group : Absolute Standard Rotary Encoders, Analog Output Type
