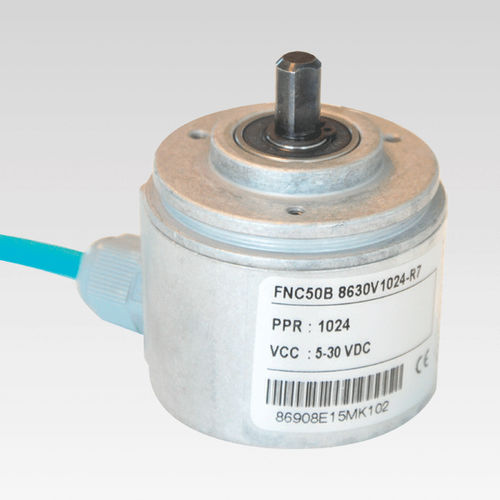

Incremental rotary encoder FNC 50BopticalflangeIP65
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- optical
- Construction
- flange
- Protection level
- IP65
- Applications
- industrial, for elevators
- Other characteristics
- programmable
- Housing diameter
Max.: 50 mm
(1.97 in)Min.: 50 mm
(1.97 in)- Resolution
Max.: 65.54 µm
Min.: 1 µm
Description
General Features
o - Industry 50 mm standard size
o - Clamping servo end hollow shaft flange versions
o - Robust mechanical and electrical construction
o - Protection up to IP67
o - Up to 65.536 PPR max.
o - <2 MHz frequency
o - Programming via FNC PT - PT programming tool
o - FNC PT-PS easy programming software
Flange Diameter - 50 mm,
Supply Voltage - 5Vdc, 5-30Vdc,
Connection Type - 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12/4pin, M12/5pin, M16/7pin, M16/14pin, M23/12pin,
Shaft Diameter - 4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm,
Pulse - 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 141, 200, 250, 300, 360, 400, 500, 512, 600, 720, 800, 900, 1000, 1024, 1200, 1250, 1440, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000, 6000, 8000, 8192, 10000, 12500, 16384, 20000, 25000, 65536,
Output Circuit / Push-Pull - ABZ:3, AB+A'B:4, ABZ + A'B'Z':6,
Product Group - Programmable Rotary Encoders,
