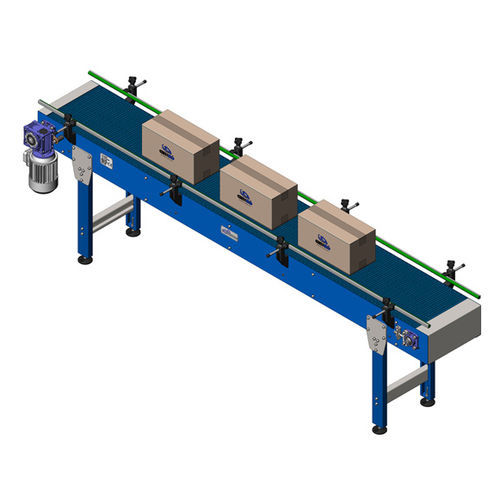

Belt conveyor TBM series
screwinclinedstraight

belt conveyor
belt conveyor
belt conveyor
belt conveyor
belt conveyor
belt conveyor
belt conveyor
Add to favorites
Compare this product


Characteristics

Technology
belt, screw
Form
inclined, straight
Sector
for the food industry, for the automotive industry, for logistics
Transported product
food, for boxes, for containers, for trays
Other characteristics
modular, compact, height-adjustable, stainless steel
Length

Max.: 5,000 mm
(196.85 in)

Min.: 1,000 mm
(39.37 in)

Description

Plastic belt modular conveyor with low friction. It’s very versatile, suitable for multiple processes and industries. Transport of boxes and trays, containers, food product, etc. Belt in different qualities and colours. Its working configuration can be in straight or inclining section for products up or down. It can carry many accessories like adjustable guides, overhead guards, stops and brakes, transfers… Compact, modular design, totally expandable, assembled by screws. Low maintenance costs. Allow quick access to inspection or replacement of rollers. • Robust, solid structure assembled by screws and made of galvanized steel in thicknesses of 2 and 6 mm. • Thermoplastic supporting feet for attachment, level and height are adjustable. • 30 mm pass plastic modular belt. It’s made of grey polypropylene.. • Gear motor of direct transmission and fixed velocity. Installed power: 0.37kw. • Structural features by load progressing guides, about 50 mm on the belt. • Structure finish: – In pickled steel, painted in RAL colours of your choice. – In AISI-304-AISI-316 stainless steel. • Set of brackets for detectors. • Manual adjustable lateral guides. • Overhead guard. • Inclining section transport with simple and mixed curve. • Belt with pushers to up product. • Full automation for integration into an automatic line.
