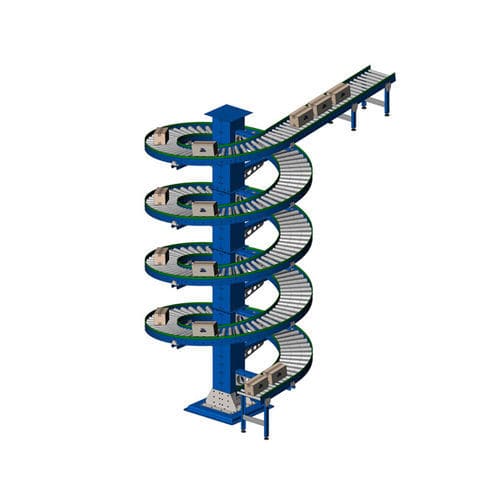

Spiral conveyor EMRG series

rollerscrewfor the food industry

Spiral modular conveyor of gravity tapered rollers for packing processes belongs to the support machines group. It can transport boxes, trays, plastic containers, packages…Tapered rollers make a safe and quiet transport of the load, keeping it balanced all time, and so lateral bars are practically dispensable. Because of its modularity it can be extend in the required sections. Easily transportable, it’s supplied dismounted, in 360º sections. Compact, modular design, totally expandable, assembled by screws. Low maintenance costs. Allow quick access to inspection or replacement of rollers. • Robust, solid structure assembled by screws and made of galvanized steel in thicknesses of 3 and 6 mm. • Thermoplastic supporting feet for attachment, level and height are adjustable for the conveyors. • D-50 mm metallic roller with a PVC tapered sleeve. • Structural features by load progressing guides, about 50 mm on the roll. Optional equipment • Structure finish: – In pickled steel, painted in RAL colours of your choice. – In AISI-304-AISI-316 stainless steel.
