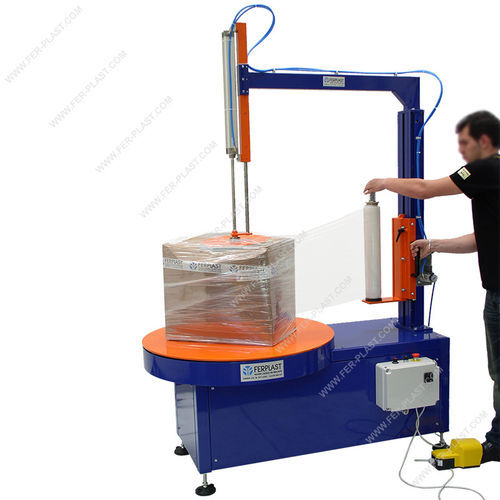

Turntable stretch wrapper FP BOX

semi-automaticboxwith rollers

FP BOX Rotary Table Box Wrapping Machine Semi-automatic rotary table wrapping machine model FP BOX, specifically designed for wrapping boxes and small packages. The rotation of the table is motorized, activated by the pedal and with adjustable speed; the roll up/down movement is manual with a counterweighted roll holder. The standard table has a completely smooth turntable. Depending on the use, it is possible to request non-slip rubber or different neck locking systems. The FP BOX model uses manual film reels weighing 2.5 or 5 kg. Model: FP BOX Load capacity: 200 Kg Rotary table diameter: 1000 mm Max. pack dimensions: 800 x 800 x 1000 mm (h) Height from floor: 700 mm Usable film: 2.5 kg or 5 kg reels, various diameters and colors Film tensioning: Mechanical clutch Rotation speed: 10-20 rpm, variable with inverter Ascent/descent: Manual with counterweight Power supply: 220V 50Hz single-phase (380V three-phase on request) Installed power: 0.37 kW Machine weight: 200 Kg Machine dimensions: 1600 x 1000 x 1800 mm (h) Operation Turn on the machine, place the load on the platform and attach the film to the base of the box. Where applicable, it is possible, by operating lever, pneumatically bring down the presser stabilizer (optional) that allows you to hold steady light boxes and unstable packs. Then press the pedal to start turning the table and wrap the box by making 2-3 turns at the bottom. You can adjust the speed by potentiometer. After 2-3 turns manually lift the counterweighted reel trolley and make the windings remaining being careful to overlap slightly the film at every turn. When release the pedal the turntable stops and you can cut the film. Use pneumatic lever to raise the tamper (optional) and remove the box. Now the box is wrapped on the side panel. To make the full winding, if the package does not contain items that are damageable, replace it and carry out the winding of the top and bottom. Optional Wheels with brake Press stabilizer Stretch Film for Wrapping Machines FP BOX The film normally used on winding machines FP BOX is manual by 23 my standard in coils from about 2.5 or 5 kg. It is also available in white color 30 my, suitable to protect the contents of packages from sunlight. The film is opaque white. It can be used to hide valuable goods during transport. The type of film delivered by us is of premium quality and is suitable for operation on our machines. We recommend using only film of premium quality as it reduces considerably the time of packaging, waste and breakdowns caused by use of an unsuitable product.
