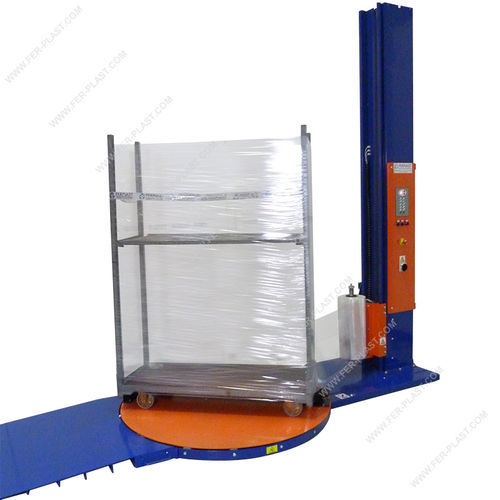

Turntable wrapping machine FP 15 ES ROLL

automatictransportcoil

The FP 15 ES ROLL wrapping machine is designed for wrapping trolleys (roll containers) with a manual film hooking/cutting system and an automatic winding cycle. It features a height-adjustable limit switch to stop the reel trolley and an adjustable base limit switch to start winding at the desired height. The digital panel offers 3 winding programs, and the machine includes a guide for trolleys and a mechanical block operated by foot. Compliant with CE standards. - Model: FP 15 ES ROLL - Rotary table speed: 4-7 rpm - Maximum load: 2000 kg - Maximum pallet dimensions: 800 x 1200 (600 x 1400) mm - Pallet max height: 2000 mm (2700 mm with optional) - Turntable diameter: 1500 mm - Height of turntable: 75 mm - Power supply: 380V triphase – 50Hz - Installed electric power: 0.75 kW - Machine dimensions: 1500 x 2500 x 2550 mm (h) - Weight: 500 kg - Film reel dimensions: external diameter 300 mm, inner diameter 75 mm, height 500 mm - 3 wrapping programs: uphill only, up/down, manual - Digital panel, mechanical clutch for film tensioning, chain transmission for reel ascent/descent - Column folding for easy transport, base with fork mounted forklift - Rotary table with guides for trolleys and mechanical interlock - Reset button for coil repositioning, programming RPM upper/lower timer Operation: Place the cart on the platform, lock with the mechanical stop, hook the film at the bottom, select the wrapping program, and press start. The machine automatically performs the winding and stops. Cut the film manually. On request: Turntable diameter 1800 - 2000 mm Stretch Film for Wrapping Machines: The standard film is 23 my in rolls of approximately 16 kg. With 1 roll, you can wrap an average of 60 pallets. White 30 my film is also available to protect contents from sunlight. The film is opaque and can hide valuable goods during transport. We recommend using premium quality film to reduce packaging waste and failures.
