Manual tilter FPHK 285-C series

metallifting

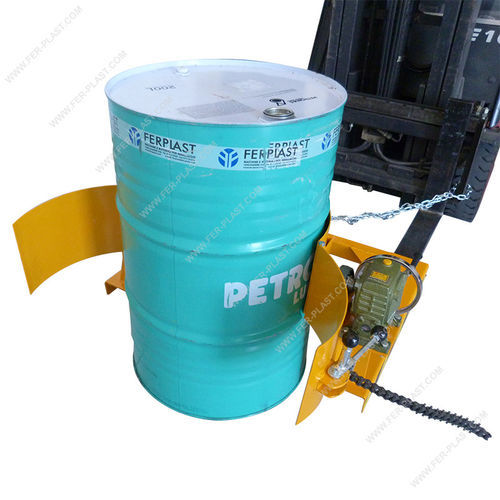

FPHK 285-C - Drum Tilter for Forklifts The FPHK 285-C tilter has a fork-mounted structure and is suitable for lifting and emptying metal drums from 200 liters with diameter 580-600 mm. The device is complete with a band for locking the drum, a frontal safety rod and an angular transmission with a handwheel for rotation. The tilter can also lift plastic drums with edges but only of the type that can be seen in the picture. MODEL: FPHK 285-C Load: Kg 300 Forks wheelbase: mm. 820 Forks seats size: mm. 150x55h Lifting drum diameter: mm. 580-600 Overall: mm. 1000x1110x850 h Tare: Kg 60 If it is necessary to add oil, the technicians recommend using about 150 ml of 85W140 gear oil (or similar). Deepening on the CE certification The equipment is supplied complete with CE certification and use and maintenance manuals relative to the object of sale only. Before use, the customer is required to verify that the forklift on which the object will be installed complies with all the regulations, also considering the combination of the elevator and the equipment. It is also the customer’s responsibility to inform him of any special tests he must perform before use. By making the purchase the customer declares himself aware of this information and, where necessary, undertakes to have his elevator tested before using it with the equipment fitted. Also remember to read the use and maintenance manual carefully. Ferplast is not responsible for the careless or inappropriate use that is made of the equipment sold. - Handwheel tilting - Capacity: 300 kg - Fork-mounted structure - Suitable for metal drums (200 L, 580-600 mm diameter) - Can lift certain plastic drums with edges - Band for locking the drum - Frontal safety rod - Angular transmission with handwheel for rotation - CE certified - Supplied with use and maintenance manual
