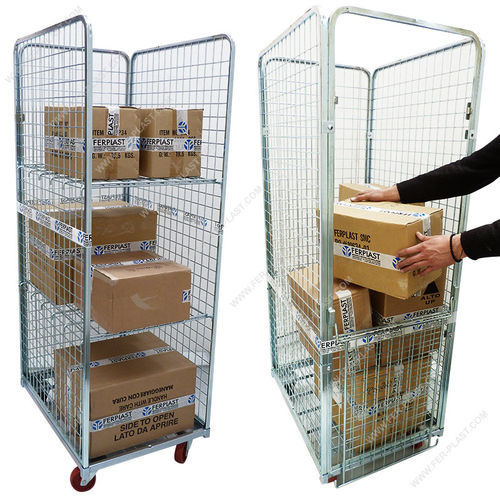

Multipurpose roll container CP 04 series

for laundry4-panel3-panel

The series of mesh containers with tight mesh are suitable for the transport of products in supermarkets, department stores, laundries, hotels, etc. The mesh of the walls with dimensions mm. 50 x 50 prevents leakage of the product. Equipped with three or four walls bolted to the base and fixed to each other with clamps. Steel Base: - Base wire and steel pipe complete with polypropylene wheels (2 fixed and 2 swivel) mm. 106x40 mounted on bearings with roller cages (flow x wheel Kg. 150) - Mesh of shoulder mm: 50x50 h - Mesh of base mm: 56x107 - Soldering at 360° on the wires - Tubes reinforced in the shoulders - Thick materials more solicited - 5 holes for drainage Roll Container Mesh 50x50 with 3 or 4 Walls Available In: - CP 04.A0 base 500 x 800 height 1800 mm - CP 04.A6 base 600 x 600 height 1800 mm - CP 04.A1 base 600 x 800 height 1800 mm - CP 04.A2 base 700 x 800 height 1800 mm - CP 04.A4 base 600x1200 height 1800 mm - CP 04.A3 base 800x1200 height 1800 mm The minimum order for each model of roll containers is 4 pieces. The carriages can be ordered according to the minimum purchase indicated, however to optimize transport and reduce costs recommend buying them in the quantities indicated in the table. Technical Specifications: - Mesh size: 50x50 mm (walls), 56x107 mm or 50x130 mm (base) - Base sizes: 500x800 mm, 600x600 mm, 600x800 mm, 700x800 mm, 600x1200 mm, 800x1200 mm - Height: 1800 mm - Capacity: 600 kg - Polypropylene wheels: 2 fixed, 2 swivel, diameter 106x40 mm - Finish: Bright zinc chrome plating - Minimum order: 4 pieces - Delivery: Dismounted, packed as specified per model
