Handling container AN-PLA series

industrialsafetywaste recycling

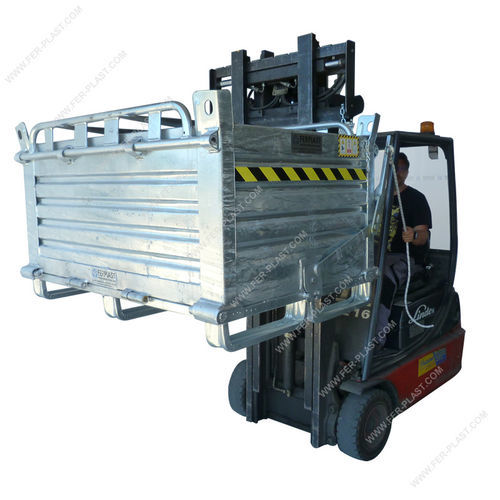

INDUSTRIAL DUMPERS WITH OPENABLE BOTTOM - (SINGLE OR DOUBLE) Metal containers made of painted steel, ideal for the collection and handling of industrial production waste such as metal scraps, wood, waste, etc. They can be easily stacked and forklifted with a forklift or lifted by crane. The opening mechanism is made in such a way that the operator can empty the container directly from the driver's seat by acting on a release lever. When emptying is completed, the bottom closes automatically by placing the container on the ground. For greater operator safety there is a safety lock which prevents accidental opening during handling. The AN-PLA models are available in the version with single or double door and in the RAL colors visible in the image. Upon request, it is also possible to have the boxes finished with hot-dip galvanisation. - Bins with openable bottom that can be opened with single or double door. - Load capacity: 2000 Kg. MODEL | Bottom opening | Dimensions (AxBxC) | Feet height (D) | Crane hooks height (E) | Volume | Load AN-PLA01 | 2 doors | mm 1000x800x650h | mm 114 | mm 100 | 0.5 m³ | 2000 Kg AN-PLA02 | 2 doors | mm 1000x800x1000h | mm 114 | mm 100 | 0.8 m³ | 2000 Kg AN-PLA03 | 2 doors | mm 1000x800x1250h | mm 114 | mm 100 | 1 m³ | 2000 Kg AN-PLA04 | 2 doors | mm 1500x1000x650h | mm 114 | mm 100 | 1 m³ | 2000 Kg AN-PLA05 | 2 doors | mm 2000x1000x1000h | mm 114 | mm 100 | 2 m³ | 2000 Kg AN-PLA06 | 2 doors | mm 1500x1000x1000h | mm 114 | mm 100 | 1.5 m³ | 2000 Kg AN-PLA011 | 1 door | mm 1000x800x650h | mm 114 | mm 100 | 0.5 m³ | 2000 Kg AN-PLA012 | 1 door | mm 1000x800x1000h | mm 114 | mm 100 | 0.8 m³ | 2000 Kg AN-PLA013 | 1 door | mm 1000x800x1250h | mm 114 | mm 100 | 1 m³ | 2000 Kg AN-PLA014 | 1 door | mm 1500x1000x650h | mm 114 | mm 100 | 1 m³ | 2000 Kg AN-PLA015 | 1 door | mm 2000x1000x1000h | mm 114 | mm 100 | 2 m³ | 2000 Kg AN-PLA016 | 1 door | mm 1500x1000x1000h | mm 114 | mm 100 | 1.5 m³ | 2000 Kg - Available in painted steel or hot-dip galvanized finish (on request). - Color: RAL colors available. - Stackable and suitable for forklift or crane handling. - Automatic bottom closing after emptying. - Safety lock to prevent accidental opening. Models and prices (excluding VAT): - AN-PLA05: Box mm 2000x1000x1000h - 2 doors - Load 2000 Kg - RAL color to choose from those indicated - 1,690.00 € - AN-PLA04Z: Caisson mm 1500x1000x650h - 2 hatch - Capacity 2000 Kg - hot galvanized - 1,950.00 € - AN-PLA05Z: Box mm 2000x1000x1000h - 2 doors - Load 2000 Kg - hot dip galvanized - 3,220.00 € - AN-PLA015: Box mm 2000x1000x1000h - 1 door - Load 2000 Kg - RAL color to choose from those indicated - 1,850.00 € - AN-PLA015Z: Box mm 2000x1000x1000h - 1 door - Load 2000 Kg - hot dip galvanized - 3,380.00 € Technical specifications: - Material: Painted steel or hot-dip galvanized steel - Load capacity: 2000 Kg - Bottom opening: Single or double door - Stackable: Yes - Forklift and crane compatible: Yes - Automatic bottom closing: Yes - Safety lock: Yes - Available colors: RAL range - Volume: 0.5 to 2 m³ depending on model
