Thermal transfer label printer B-EX4T2 series

direct thermalmatrixbarcode

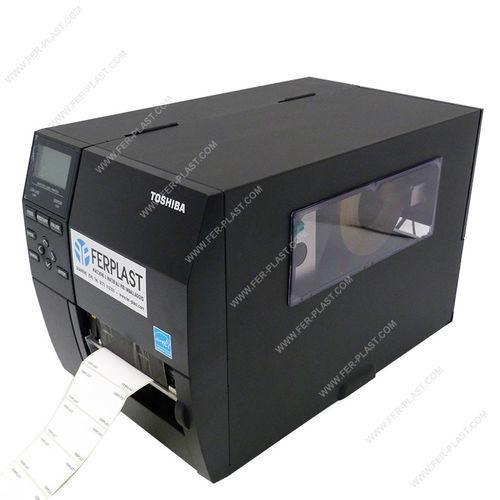

TOSHIBA B-EX4T2 INDUSTRIAL PRINTER Toshiba B-EX4T2 direct thermal/thermal transfer printer (203 dpi - 300 dpi - 600 dpi) The B-EX4T2 series printers are the optimal solution when medium print volumes and high resolution are required in a product that can operate in an industrial environment with a low operating cost. Thanks to the compatibility with the different printing protocols, the B-EX4T2 allows an immediate replacement of the old printing devices without the need for reprogramming of the procedures. The printers are equipped with reflective and transmitting sensor. The B-EX4T2 printer has a less professional FLAT thermal head than the B-EX4T1 printer, which instead has a more professional NEAR EDGE model head. Model: B-EX4T2 Technology: Thermal transfer / direct thermal Thermal head type: Flat Print width: Max. 104 mm Print length: 8 to 1,500 mm (600dpi Max 500mm) Support width: 25-114 mm (203-300 dpi), 15-114 (600 dpi) Print speed: Up to 304 mm/sec (12 ips) Resolution: 203 / 300 / 600 DPI Memory capacity: 32 MB SDRAM, 16 MB Flash Barcode support: JAN8, EAN8, JAN13, EAN13, UPC-A, UPC-E, EAN8, EAN13, UPC-A, UPC-E + 2digit, EAN8, EAN13, UPC-A, UPC-E + 5digit, Industrial 2 of 5, NW-7, Customer Bar Code, CODE39 (STANDARD), POSTNET, CODE39 (FULL ASCII), RM4SCC (Royal Mail 4 State Customer Code), ITF, MSI, KIX CODE, CODE93, CODE128, EAN128 Interfaces: USB 2.0, Ethernet 10/100 Mbit 2D codes: PDF417, QR Code, Maxi Code, Micro PDF417, Data Matrix, GS1 Databar, CP CODE Dimensions: 278 x 310 x 460 mm Weight: 17 kg (without support and tape) Operating temperature: 5°C to 40°C, relative humidity (RH) 25-85% without condensation OPTIONAL available: - High speed rotary cutter - Standard disc cutter - Centronics parallel card Centronics - I/O Synchro card - RS232 serial card - Real Time Clock & USB memory - New WLAN module - Peel-Off for printers - Damper - Stacker - card stacker - External electrical rewinder for 4-5" printers * RS-232 and WIFI cannot be installed at the same time. LABELS WHICH MAY BE USED: - Core diameter (internal): 38 - 76.2 mm - Outer roll diameter: 200 mm - Material thickness: 0.08 - 0.17 mm INKING TAPE USABLE WITH TOSHIBA B-EX4T2 - Ribbon length: 600 m. maximum The inked tape is divided into three types depending on the percentage of wax or resin present and is chosen depending on the use to be made. - WAX TYPE (WAX) - AW6F and AW1F It works at not very high temperatures, extending the life of the printer. Being a mormide component, the useful life of the label is less than labels printed with wax-resin or resin. Suitable for paper supports. - WAX-RESIN TYPE (Wax/Resin) AG3 Composed of high percentages of wax and resins and with polyester base. Excellent quality/ price ratio - TYPE RESIN (Resin) SS2F Composed of high percentages of resins and with polyester base. High resistance to abrasive agents and print quality on surfaces such as paper, plastic and translucent paper. Better quality SIMPLE INSTALLATION: The printer comes already complete with drivers and free basic software for creating labels and printing logos and barcodes. The printer is free installation.
