CNC bridge saw MFL STRADORA

5-axismonobloc

Product description

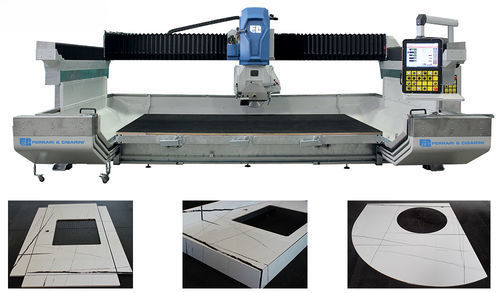

MFL STRADORA CNC is a monobloc bridge saw with a rotating and tilting head and a hot-dip zinc coated frame to provide corrosion protection for large-format processing. The machine features 5 interpolated axes running on steel guideways with recirculating ball slides protected by bellows and steelbands with revolving rollers lubricated by a centralized system. Axis movement is driven by high-precision brushless motors. The head offers 0°–90° tilt and 0°–360° continuous rotation (+/−3° extra), enabling transverse, longitudinal and curvilinear cutting without repositioning the panel.

Available configurations / operations

• Straight cuts for shopfitting and stairways
• Tilted and curved cuts
• Cut-out and nesting with disc & core drill / incremental finger bit
• Milling

Attachments
FERRARI&CIGARINI Large Sizes (PDF) available as product documentation.

Video
Product video available demonstrating MFL STRADORA CNC operations and capabilities.

Technical characteristics / specifications

• Machine type: monobloc bridge saw with rotating and tilting head
• Frame: hot-dip zinc coated for corrosion protection
• Axes: 5 interpolated axes
• Guideways: steel guideways with recirculating ball slides protected by bellows
• Transmission: steelbands with revolving rollers protected by bellows
• Lubrication: centralized lubrication system
• Drive: high-precision brushless motors for axis movement
• Head tilt: 0°–90°
• Head rotation: 0°–360° (±3° extra)
• Programming: icon-based software interface with 2D library of artifacts and frames
• Operations: transverse, longitudinal and curvilinear cutting; drilling; milling; cut-out and nesting with disc & core drill / incremental finger bit
