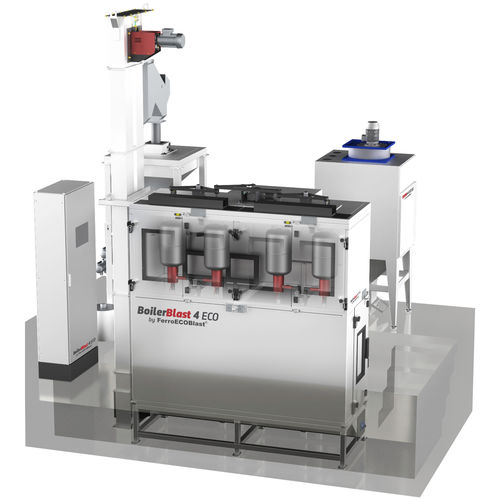

BoilerBlast 4 ECO is designed for inside surface preparation before enamel coating. It is off-line installation, what means that it can work independently from other production equipment. Loading and unloading of work pieces is done manually and complete working process is done automatically. It has two main stations where 2 workpieces are processed in each station. This type of machine is specially designed for smaller volumes of boilers; from 5-50l capacity. Installation can be operated with one or two operators for highest production capacity.
In this installation we use our special designed blasting nozzles that can perfectly blast complete inner surface of boilers. All parts are hanged inside the machine on rotating hooks. In this solution we use our special designed blasting nozzles that can perfectly blast complete inner surface of boilers. Starting with opening flange, bottom lid, walls and upper lid. After blasting process is finished, machine automatically closes blasting media and blowing off the rest of the media out of the boilers is done with the same nozzles. This unique design allows us to prepare workpieces in only one station.
Installation successfully replace non ecological chemical pre-treatment.
- Complete automatization of the process
- 4 stations
- Abrasive recovery & recycling system
- FerroSmartPanel user-friendly interface
- State-of-the-art design
- High productivity
- Fully automated and controlled
- Repeatability of blasting process
- Less space required for installation
- Lower investment
- Independence from other production process
