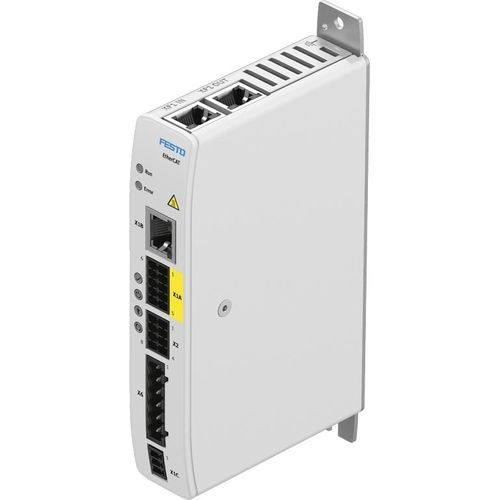

DC servo-drive CMMT-ST series

EtherCATModbusProfiNet

The extremely small servo drive CMMT-ST positions and moves highly economically, dynamically and precisely up to 300 W, point-to-point or interpolating. It is also commissioned simply via Festo Automation Suite and integrated Auto-Tuning in the shortest of time. • Space-optimised servo drive for operating stepper motors and brushless direct current motors (EC motors) • Ideal for positioning tasks and point-to-point and interpolating motion solutions • The new multiprotocol variant (CMMT-...-MP) has all fieldbuses (PROFINET, EtherCAT®, EtherNet/IP, Modbus®) integrated in one servo drive hardware • A servo drive for direct fieldbus integration for controllers from the major manufacturers with associated function blocks • For extremely economical applications with low power requirements of 150 W at 24 V DC, 300 W at 48 V DC and a peak power of 800W • Parameterisable energy management to increase efficiency • Auto-tuning makes commissioning of rotary and linear motions easier • Very efficient for tasks with low power requirements • 50% more compact than the smallest servo drive CMMT-AS • Optimised with stepper motors such as the new EMMB-ST • Sustainable operation thanks to energy recovery
