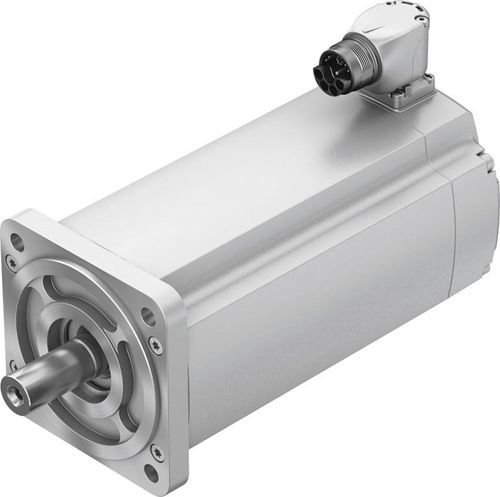

AC servomotor EMMT-AS series brushless400 V230 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- brushless
- Voltage
- 400 V, 230 V
- Protection class
- IP40
- Configuration
- with brake
- Number of poles
- 5-pole
- Power
Max.: 12 kW
(16.315 hp)Min.: 0.35 kW
(0.476 hp)- Torque
Max.: 93 Nm
(68.5933 ft.lb)Min.: 0.6 Nm
(0.4425 ft.lb)- Rotational speed
Max.: 7,100 rpm
(44,610.62 rad.min-1)Min.: 2,700 rpm
(16,964.6 rad.min-1)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -15 °C
(5 °F)
Description
The servo motor EMMT-AS for demanding and dynamic applications is characterized by very good controllability and path accuracy for positioning tasks and the space-saving single-cable solution significantly reduces installation effort.
• Brushless, permanently magnetized synchronous servo motor
• Digital absolute linear potentiometer, single-turn or multi-turn
• Extremely low cogging torque – supports high synchronization even at low rotational speeds
• Simple connection technology (OCP: One Cable Plug) – one connecting cable for supply and encoder
• Rotatable plug with adjustable angle (310°)
• Available with holding brake
