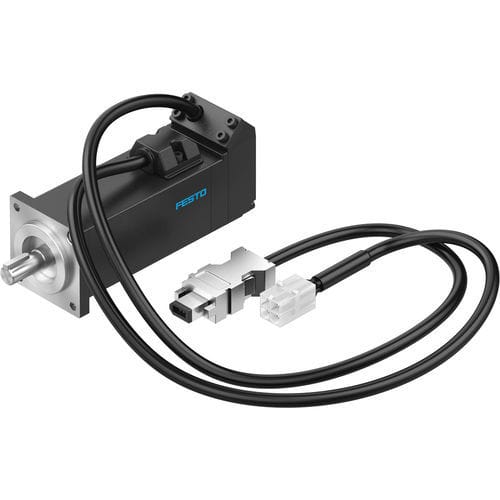

Synchronous servo motor EMMB-AS ACwith DC brakecompact
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, AC
- Configuration
- with DC brake, compact
- Protection class
- IP65, IP40, IP54
- Applications
- with built-in encoder
- Power
100 W, 200 W, 400 W, 750 W
(0.14 hp, 0.27 hp, 0.54 hp, 1.02 hp)- Intensity
1.3 A, 1.4 A, 2.4 A, 3.8 A
- Torque
0.32 Nm, 0.64 Nm, 1.27 Nm, 2.39 Nm
(0.23602 ft.lb, 0.47204 ft.lb, 0.936704 ft.lb, 1.762774 ft.lb)- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)- Operating temperature
Min.: -15 °C
(5 °F)Max.: 40 °C
(104 °F)
Description
Particularly low-cost and compact AC synchronous servo motor for simple positioning tasks.
• Basic series - for cost-sensitive, simple positioning tasks
• A selection of 3 motor sizes in up to 2 lengths
• Brushless, permanently magnetized synchronous servo motor
• Digital absolute displacement encoder, single turn; multi-turn optional
• Sturdy, dynamic, accurate
• Optimised connection technology
• Degree of protection IP65 (for motor housing and cable connections (without plug connectors)) and up to IP54 (on the motor shaft with shaft seal)
• Optionally with holding brake
