Nut feeding unit N ED

manualautomatic

AUTOMATIC NUT PRESENTER – MANUAL AND AUTOMATIC USE
The pick&place place systems for manual and automatic use consist of N ED nut presenters (Nuts Easy Driver) to ensure fast, smooth work cycles, helping to reduce production costs contributing concretely to the reduction of production costs since they allow a significant reduction in cycle times.

• The phases of picking up the nut and positioning it are eliminated
• Reduction of the cycle times over 24%
• Increase of the productivity
• Reduced fatigue for operator
• Higher quality of the assembled products: no nut remains into the components

TO BE USED WITH:

• Air and electric screwdrivers with straight lever start
• Air and electric nutrunner motors with remote control managed by the customer

FOR NUTS:
STANDARD
ISO 4032 – UNI 5588 M4, with nut height mm 6.5

SELF LOCKING
ISO 10511 – UNI 7474 M4 , with nut height mm 9.5

FLANGED
ISO 4161 – DIN 6923 M4, with nut height mm 8

For different nuts, a feasibility analysis must be carried out

FEATURES

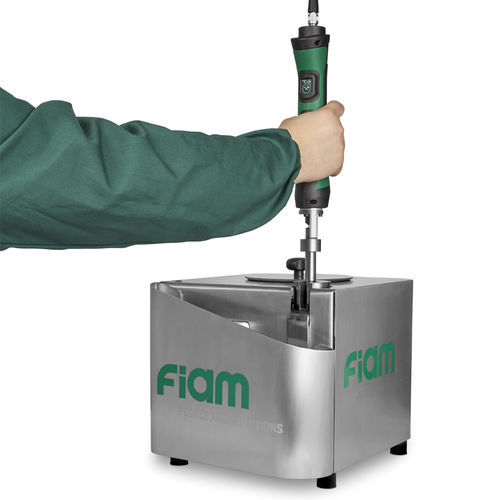

• Nut pick-up station with “open pick-up well”: designed for frontal nut extraction, which eases manual operations
• Pull-out drawer in which defective nuts, which fail to be properly picked up, are collected
• Integrated electronic unit for controlling and adjusting the feeding speed of nuts
• Nut presence detection sensor: blocks the feeding of the next nut until the first available one is picked up

Nut pick up and retaining Socket and Socket guide: to be ordered separately.
