Information display VIR

LCDnumericIP65

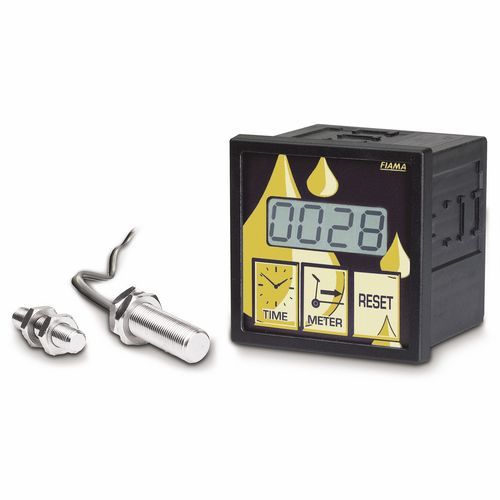

The VIR multifunction display is an instrument that was specifically conceived for automatic hose irrigators. It can be easily applied to the machine and it supplies the following indications: instant irrigation speed in metres/hour, measure of unwound hose in metres, time remaining to the end of irrigation in hours and minutes at the current speed. The parameters can be easily and immediately consulted through the three keys located on the front panel: information is displayed on a large high visibility liquid crystals display with digits being 13 mm high. The instrument is supplied with 3 batteries lasting more than 3000 hours of functioning. The VIR instrument is available with TR roller transducer to be applied directly into the hose: the transducer is connected to the instrument with cable and K type connector complying with the DIN43650 standards with IP65 protection degree. The display VIR-SP together with the bi-directional magnetic sensor SM: the magnetic transducer is seated in a cylindrical case threaded M12x1 with a 2m long cable, and it works with a magnet, which has to be mounted on the rotating part of the irrigator.
