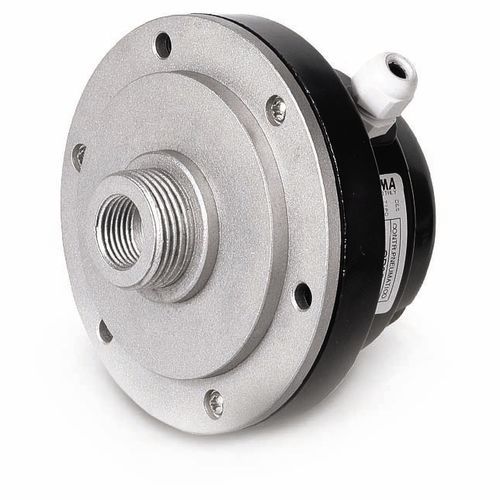

Storage tank level controller CP85

The CP85 is a level control, simple and economical; the case is fixed directly to the tank, by the means of flange or threaded joint 1” gas. Inside, there is a membrane that forms a pressure chamber to connect to the pneumatic outlet with a 1/2” pipe (rubber, plastic, metal, according to product) whose end is the min. or max. level point. Air pressure produced by the level increasing presses the membrane that activates a microswitch (release point): when fluids goes under the release point, the switch commutates again (drop-out point). ➤ In this item there are not parts that make direct contact with liquids, so that it’s possible to control viscous liquids and wastes on pipes wall: oils, paints, inks, dense alimentar fluids like honey, chocolate, marmelade, scyrop etc.
