Transducer display F20K

LCDnumericposition

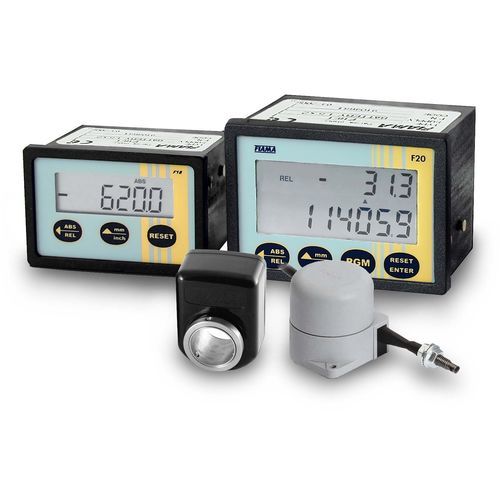

F20K- and F18K- are dimensions display to be combined to the wire magnetic transducer EFB or hollow shaft magnetic transducer EN20M, in order to carry out a complete device for measuring linear shiftings characterized by an easy applicaton by the means of the battery-supply, and by an easy installation of the wire transducer. Functionality: ■ absolute or in incremental mode by simply pressing the suitable key (relative measures within the measuring field may be carried out) ■ possibilty to select the count direction, the position of the decimal point on the displayed dimension, and the measure unit (mm or inches, degrees). ■ dimension may be corrected through a programmable factor with values ranging from 0,00001 and 999999.§ ■ possibilty to set a preset dimension that may be recalled through the suitable key. ■ available distinct origins for the correction of quota by using different tools and the offset function for the balancing of tool wear. ■ keys enabling to recall the preset dimension and the absolute dimension/relative dimension switch may be inhibited in a very simple way. The set data are stored in the inner memory and they cannot never get lost. The most important characteristic is the keeping of the displayed quota in absolute mode functioning all through battery life. On the display all activated functions are showed by a symbol.
