Position indicator A3X series

digitalpanel-mount

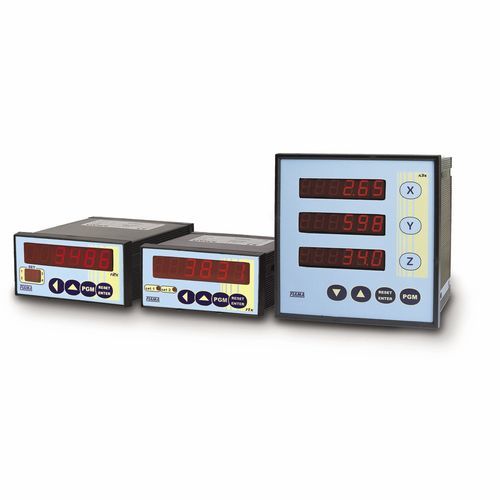

The F_X series are mono-bidirectional display unit with microprocessor with display, particularly suitable for the measurement of linear and angular dimensions with signals supplied by incremental transducers such as encoder and optical lines, magnetic band, proximity sensor. Other features: input pulses correction factor, enabling of 2 relays, reset/preset of the dimension from keyboard and from terminal box. The F_X are extremely versatile and suitable to many different applications. The following models have the RS232 or RS485 serial link MODBUS RTU. • F1X5: mono-bidirectional display unit with microprocessor and six-digit display (reading scale -99999 +999999). Versions: F1X5- displayed; F1X5-2 with 2 switch relay interventions; F1X5-RS232 or F1X5-RS485 with RS232 or RS485 serial output MODBUS; F1X5-2RS232 or F1X5-2RS485 with 2 relay interventions and RS232 or RS485 serial output. The version F1X5-SSI is used for absolute transducers which use an interface SSI (standard RS422): the system can be configured to accept a gray or binary format with byte numbers that can be selected between 4 and 24. • A3X: programmable mono-bidirectional multifunction counter with three axes on 6-digit displays, (reading scale -99999 +999999), ideal solution for all the cases in which it is necessary to display the position on machines with three axes (honing machine, milling machine, etc.). Versions: A3X- displayed, A3X-2 with 2 switch relay interventions per every axis, A3X-RS485 with serial output per every axis
